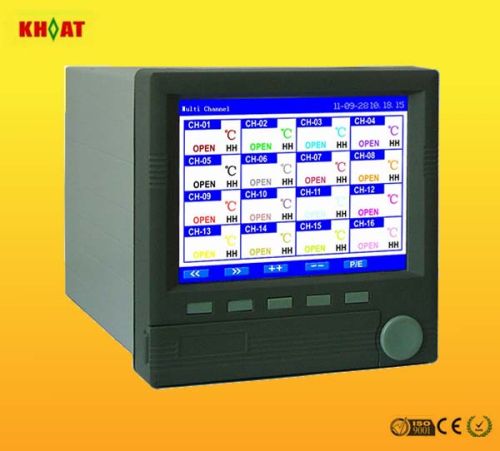

Kh300g Universal 16 Channels Temperature Data Logger

We are offering kh300g universal 16 channels temperature data logger.
Product description
universal 16 channels temperature data logger
kh300g 16 channels high quality temperature data logger, size 144*144*18mm, up to 16 channels, high accuracy, high quality and performance, isolated among the input channels, universal use, can monitor, record, analyze the process in various industry application.
application
petroleum, marine, sewage treatment, pharmaceutical, metallurgy, paper, cement, building, electricity, medical university lab, nuclear power, food, aviation and so on.
specification
display: 5.6inch, 320*240 color lcd
power supply:100-240vac;24vdc
accuracy:+-(0.2%fs+1)digit
analog input
thermocouple k,s,e,j,t,b,n,r,wre325,wre526
rtd pt100,cu50,cu100
linear voltage 0-5v,1-5v
linear current 0-10ma, 4-20ma
frequency input 0-5khz, one channel
others 0-20mv,0-60mv,0-100mv,0-500mv
modular output
• relay alarm output
• 4-20ma retransmission output
• rs485 communication port
• rs232 printing port
• dc5v12v24v power supply for sensor
• usb
record time=45days*record interval time ordered channel number
record interval time can set flexibly in recorder:1,2,3.3600s
e.g.: the record interval time is 60s, the ordered channel is 6, and it can record 450days (45*606)
evironmental temperature and humidity:0-50°c,0-85%rh
