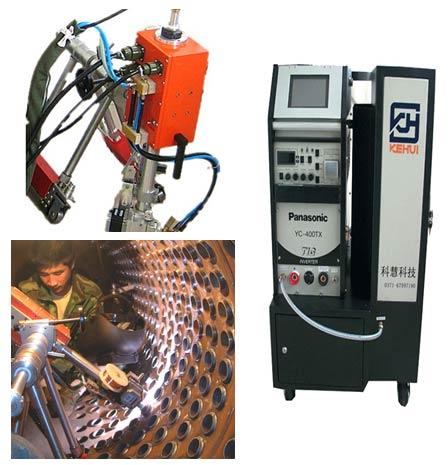

Khbt Automatic Tig Welding Machine, Brand Name : Ke-Hui

KHBT automatic tig welding machine
Main technical parameter
A Weldable tube outside diameter: 22 ~ 105mm
B Maximum welded layers: TIG six-layers + MIG six-layers
C The Max. No of tubes for butt welding: 31 (total of 30 welding joints)
D Tube rotation speed: 0.1 ~ 6 rpm
E Tube rotation moment: based on the 76mm×10mm tube length of 156m after welded
F Welding methods: horizontal welding and tube rotating
G TIG welding current: 5 ~ 400 amps.
H MIG welding current: 20 ~ 350 amps.
I Torch oscillation: Range: 0 ~ ± 10 mm , dwell time at the both side: 0 ~ 9.9 seconds, oscillation speed: 0 ~ 120 mm sec
J Torch position: adjustable angle and frontrear
Product function and characteristics
Welder lathe bed modular design, applicable to all kinds of different ways to the tube - tube docking, cylinder - cylinder docking and cylinder and flange, cylinder to sealing top docking way.
Using special central transfixion type pneumatic chuck, combining with material feeding system, can weld arbitrary length of standard and non-standard sizes of pipe
Welding torch using electric cross car-riage system, which can realize artificially and automatic arc length tracking, arc swing, and other functions, meet different welding needs
Can choose TIG welding power source hot wire system, to satisfy the Great Wall thickness, and a large number of argon arc welding wire filling needs
Based on PIC control, accurate, reliable
Adopt LCD touch screen man-machine interface, shown in English input is simple, intuitive, convenient
Welding torch adopt compulsory water cooling system, the equipment can work long time.
