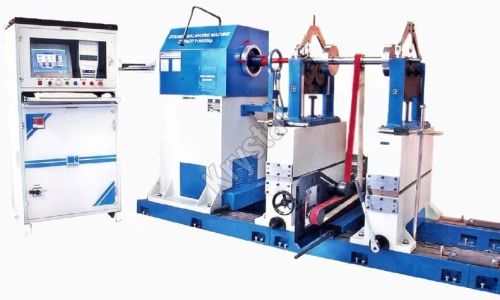

KHS Series Horizontal Axis Balancing Machine, For Industrial

Get Latest Price

Power SourceElectric
ApplicationIndustrial
Weighing Capacity:50-100kg, above 100
Volatage220 V
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Krystal Equipments

Ichalkaranji, Kolhapur, Maharashtra

5.0/5

(1)

View Number

Member Since 22 Years
Nature of Business Retailer
Year of Establishment 1987

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Power SourceElectric
ApplicationIndustrial
Weighing Capacity:50-100kg, above 100
Weighing Capacity1 Kg - 20000 Kg
Surface TreatmentColor Coated
Volatage220 V
Axis typeHorizontal

The company is a reliable Manufacturer, Exporter and Supplier of KHS Series Horizontal Axis Balancing Machine across the world. For higher balancing accuracies of the order of a micron or less, the obvious choice is our Belt Drive KHS Series Horizontal Axis Balancing Machine. Belt Drive eliminates the errors clue to drive couplings and fixtures. These errors are significant in small rotors and hence these machines are most suitable for components like armature of FHP motors, small impellers, Grinding spindles, turbo chargers etc.
Construction

Each model of this type our KHS Series Horizontal Axis Balancing Machine is of rigid and durable construction reflecting the highest quality of workmanship. Electrical controls and measuring system are separately housed in aesthetically designed cubicle. All operating controls are ergonomically arranged for the safety and ease of operation.
Electronic measuring systems- the electronic circuitry used is built in with Plug in type cards. All components used are of industry standards.

Features Of Our KHS Series Horizontal Axis Balancing Machine

Indigenous Design
Highly accurate
Minimum setting time
No coupling adaptors
Most suitable for small components
Versatile, reliable and sturdy

Variety Of Options For Measuring Systems Are Available To Suit Variety Of Rotors, For Example

Direct indication of amount on digital meter and angle with bright strobe light.
Direct indication of unbalance and angle on digital meters.
Imbalance resolved into 120". 90^o, 60^o etc.(Opti0nai)
PC based measuring system
Any Special requirement to suit the component

Optional Mechanical Attachments

Vertical and / or Horizontal drilling attachment
Milling attachment
Riveting
Under belt drive
Tangential belt drive
Any other tooling system as per special requirement

Specifications

Parameter	Unit	Model
Parameter	Unit	KHS-10 KHP-10	KHS-30 KHP-30	KHS-50 KHP-50	KHS-100 KHP-100	KHS-300 KHP-300	KHS-650 KHP-650	KHS-IT KHP-IT
Weight of job	kg	0.2 - 10	0.3 - 30	0.5 - 50	1â��100	3â��300	6.5â��650	10â��1000
Max. diameter of job	mm.	250	500	500	800	800	1000	1200
Max. Distance between bearings.	mm.	500	1000	1500	2000	2000	2000	2400
Shaft diameter	mm.	05/01/50	05/01/50	05/01/50	15-80	20-120	20-120	25-140
Balancing speed range(n)	RPM.	600-3000	500-2000	500-2000	400-1600	400-1200	300-1200	300-1200
Power of drive motor	HP.	0.33	0.5	0.75	1.5	3	5	7.5
Acceleration capacity (GDÂ²nÂ²)	kgmÂ²nÂ²	0.40x10⁶	0.48x10⁶	0.72x10⁶	1.98x10⁶	10.8x10⁶	11.65x10⁶	14.12x10⁶
minimum unbalance mas read	gm	0.02	0.04	0.06	0.1	0.2	0.4	0.5
maximum unbalance measured	gm.mm.	10⁴	3 x10⁴	5x10⁴	10 x10⁵	3 x10⁵	6.5 x10⁵	10⁶
Minimum unbalance measured	gm.mm.	0.25	0.5	0.75	2.5	5	10	15
Minimum achievable residual unbalnce (for max. Wt. of job)	microns or gm.mm. / kg	0.2	0.2	0.2	0.2	0.2	0.3	0.3
