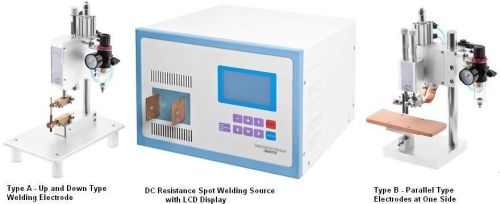

KIA Series DC Inverter Precise Welding Machine

Main Features：
1KHz、4KHz、8KHz Inverter Frequency, high precisely welding control system.
*Friendly interface: Welding parameter adjustment and Welding process display by LCD.
*Constant Welding Current,Constant Welding Voltage,Constant Welding Power,Welding Pulse Width,four kinds of controlling mode.
*Three-Stage Welding Method,there is the function of Welding Current Slowly Go Up and Down.
*Can set the parameter max and min monitoring value.
*The welding source have excellent interface functions and equipped with RS232 communication connector, can meet various welding controlling request.
*Complete model,wide application and widely used.
Main Technical Parameter：
Model No. KIA-1KA KIA-2KA KIA-3KA KIA-4KA KIA-5KA KIA-10KA
Rated Power (KVA) 4 6 10 12 16 25
Max Output Curent（DCA） 1000 2000 3000 4000 6000 10000
Rated Duty（%） 20 20 20 10 10 10
Inverter Frequency（KHz） 84 84 84 841 1 1
Welding Pulse Quantity 3 3 3 3 3 3
Welding Schedule Memory 20Groups 20Groups 20Groups 20Groups 20Groups 20Groups
Dimension-L*W*H (mm) 435*185*320 435*185*320 435*185*320 460*400*300 460*222*345 460*222*345
385*200*300 385*200*300
Weight（Kg） 18 22 22 33 23.5 26
19 20.5 24 26.5 30
