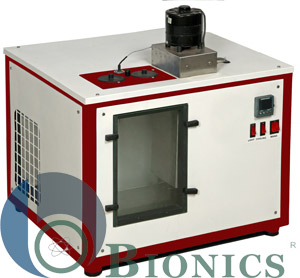

Kinematic Viscosity Bath

Get Latest Price

High grade stainless steel inner chamberDigital temperature controller
Inner Size12 x 9 x 12 Inch
Temp. ControllerPID Temp Controller w/ Accuracy ±0.5°C
over temperature & low bath level protectionCan accommodate 2, 6 & 8 viscometers
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Bionics Advanced Filtration Systems Pvt. Ltd

Tri Nagar, Delhi

View Number

Member Since 13 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Temp. ControllerPID Temp Controller w/ Accuracy ±0.5°C
over temperature & low bath level protectionCan accommodate 2, 6 & 8 viscometers
AccessoriesViscosity holder, universal type
Meet ASTM D445 & IP-71 standardsAvailable with and without refrigeration
Inner Size12 x 9 x 12 Inch
High grade stainless steel inner chamberDigital temperature controller

Kinematic viscosity is a critical factor of oils, which measures their flow of resistance. Kinematic Viscosity Bath is the equipment, which is utilized to measure kinematic viscosity of different types of oils such as crude oil, lubricating fluid, diesel fuel and peanut oil etc. Viscosity baths manufactured by Bionics Scientific are successfully working in different parts of industries including automobile and food industries and pharmaceutical laboratories etc.

Our viscosity bath units offer constant temperature all over the range above and below ambient available with and without refrigeration facilities. We offer our 4 standard models, 2 from that offer 5°C above ambient to 150°C temperature range, while other 2 models offer 10°C to 150°C.

The range of viscosity baths is ruggedly designed. Like our other equipment, these units also feature stainless steel construction from inner side, while outer cabinet is made from powder coated mild steel with 2 side sealed glass windows. A provision of illumination is given, fluorescent lamp is optional and fitted if requested.

Model	BST/VB-4	BST/VB-8	BST/VBR-4	BST/VBR-8
Inner Size	12 x 9 x 12 Inch	12 x 12 x 12 Inch	12 x 9 x 12 Inch	12 x 12 x 12 Inch
Size	4 Viscometers	6 / 8 Viscometers	4 Viscometers	6 / 8 Viscometers
Temperature Range	5°C above ambient to 150°C		10°C to 150°C
Temperature sensor	PT-100
Temp. Controller	PID Temp Controller w/ Accuracy ±0.5°C
Construction	- Inner chamber: SS 304 /316 - Outer chamber: MS powder coated - Insulation: Glass wool - Window: 2 side toughened glass windows - Light: 1 tube light
Heating System	Heating by tubular Heater vertically fitted in side chamber (2.0 K.W)
Stirring	Stirring by S.S. shaft fitted with Motor
Power	230 Volts 50 Hz
Accessories	Viscosity holder, universal type
Optional	- High / low - Fluorescent lamp - IQ, OQ, PQ & DQ documentation - Voltage stabilizer
