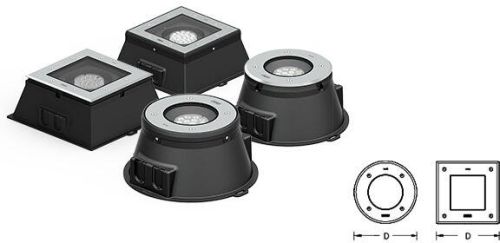

Kios Symmetrical Inground Luminaires

The small and medium size shallow LED inground uplights. Round and square surface stainless steel 304 front ring for use in buildings, shopping mall and pedestrian areas for illuminating squares, parks, gardens, sculptures, flag poles and tress. Main characteristics are low glare and the limited maintenance concept. This LED product has a standard touchable glass ideally suited for spaces that are used by the general public.
Optionally with clear or frost glass as diffuser.
The luminaire rated as CLASS I with integral driver. Available with LED white light 3000K and 4000K, LED CRI >80 and RGBW colour changing. The LED life time >50,000 Hours.
Low copper content die-cast aluminium housing with a chemical chromatized protection before powder coating, ensuring high corrosion resistance. Power is provided to the integral driver through a single PG13.5 watertight cable gland. Stainless steel fasteners in grade 316. Durable silicone rubber gasket and clear or frosted toughened glass 15mm. thick glass, 2000Kg. load is transferred by the housing to the foundation. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50Kmh. The distance between the floodlight and the illuminated surface should be at least 0.5m.
To ensure efficient drainage, gravel must be used to a depth of 450mm. and a width of 300mm. beneath the housing and should also be placed around the luminaire. Recessing box in high density polyethylene. Optional ADA anti slip surface.
