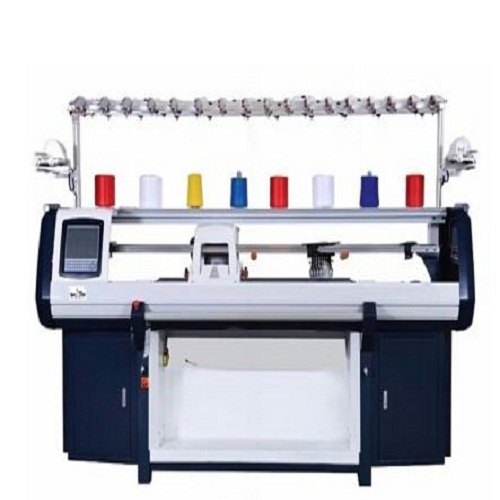

KK-2S Flat Bed Knitting Machine, Needle Style : Latch Needle

Details :

• Knitting Speed : 32 levels of independent Selections, Controlled by AC motor, max 1.6m/s
• Racking: Controlled by servo-motor, 2 inches racking on both side (Right and Left), with smaller adjustments of ½ , ¼ & ¾ inches.
• Encoder : Advanced coder adopted
• Transfer Function : Each system would be completed with transfer, Knit, Tuck and Miss. This Transfer feature is available in both Magnetic & Motorized types Variable Stitch is available as an option.
• Yarn Stitch Density Adjustment : Controlled by step motor, the length of the Knitted Yarn, adjustable range: 0-650 grade, can more precisely controthe yarn length.
• Sinker System: Controlled by a step motor, sinkers can be adjusted to the best knitting effect according to different yarns
• Takedown or Fabric Winding System : Computerized Program Instructions, controlled by a step motor, selectable of 32-section tractions, adjustable range: 0-100
• Protective System: Automatically Alarm in case of yarn-breakage, joints, oats, reverse winding, nishing of the woven part number, non-return of the moving bed, stitch conicts and program error, etc., along with a safety self-locking protective device.
• Drive way: Driving in-phase with come-and-go, adjustable of knitting at wilNeedle choose: Controlled by computer, electric magnet needle choose system with high effciency, 8 step Needle Selection at random
• CPU: Multi duty DSP process chip
• Screen Display: Adopts 10 inches color LCD screen, gure interface, Input device : USB or internet, the system memory can reach to 256MB input
• Monitoring menu: Each kind of operating parameter is shown in English and adjusted at any time when the machine is running, create conveniences for operation as much as possible
