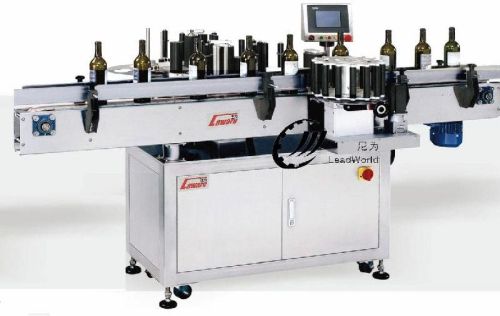

KL-502 Fixed Point Automatic Labeling Machine

We do not have to worry about stock-out situations or meeting bulk requirements, as we have an equipped warehouse facility. It has the latest inventory control and management software and helps us maintain continuous product availability. Rely on us to buy the best in class KL-502 Fixed Point Automatic Labeling Machine; we are a notable Supplier in this domain.

Characteristic

• KL-502 is composed of SUS304 chassis; conveyor belt; split bottle; rubber wheels attached; disc sentinel; labeling head head adjustment etc.Use Siemens PLC, touch screen; servo motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability; comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count , Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown,AIarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC220V 50/ 6OHZ single-phase
• Power : 2.5kw
• Labeling Speed : 20-80 bottles /min
• Labeling Accuracy : 0.5 mm (except the error between adherend and label)
• Printer with a gas source : 5MPa
• Suitable Container : D30-150 mm (Note: hand wheel adjustment,replace the disc)
• Suitable Labels : label height:15-180mm
• Label Specifications : diameter Max 420 mm, 76 mm paper roll inner diameter

Usage

• KL-502 High-speed Fixed-point Automatic Labeling
• Machine is suitable for round labeling; especially suitable for high-end labeling of alcoholic products.
• Installation of detection photoelectric the sentinel positioning labeling machine. Used for high precision and speed product labeling.

Note

• 1.Labeling speed lor relerence cnly depending on the bottle-shaped subject to the actual lest

• special specifications bottle can be customized.
