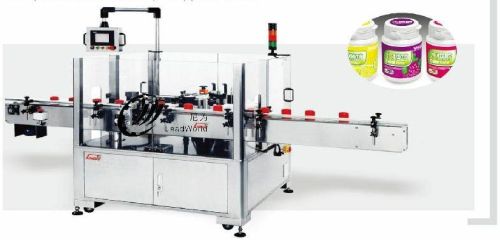

KL-503 Fixed Point Automatic Labeling Machine

We stringently follow automated warehousing system that helps us in meeting the safe storage requirements. Thus, we ensure zero damage to the products till the final dispatch. We are appreciated amidst the celebrated names in the sphere of providing exclusive range that includes KL-503 Fixed Point Automatic Labeling Machine.

Characteristic

• KL-503 is mainly composed of SU$304 chassis; security doors, conveyor belt; split bottle, pneumatic bottle clip; rubber wheels; labeling Head; Head adjustment eto.Used Siemens PLC, touch screen; servo motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability; comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count , Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown,AIarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC22OV 50/ 60HZ slngIe—phase
• Power : 1.5kw
• Labeling Speed : 20-60 bottles lmin
• Labeling Accuracy : 1 0.5 mm (except the error between adherend and label)
• Gas Source : 5MPa
• Suitable Container : D30-150 mm (Note; hand wheel adjustment, replace the disc)
• Suitable Labels : label height:15-80mm
• Label Specifications : diameter Max 420 mm, 76 mm paper roll inner diameter

Usage : KL-503 Fixed-point Automatic Labeling Machine suitable for round container labeling. And security doors, and door limit switch, automotive glass doors comply with EU safety standards.

Note :

• Labeling speed for reference ¤n|y depending nn me bottle-shaped subject lo the actual lest

• Special specilicatiuns imtle can be customized.
