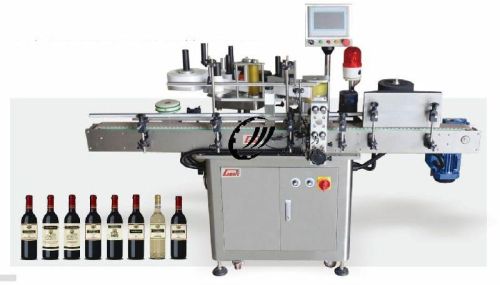

KL-506 Fixed Point Automatic Labeling Machine

Quality raw materials have been used for the production of our entire range. As a dependable name, we procure these raw materials only from trustworthy sources present in the market. Installation of modern packaging facility assists us in meeting standard as well as tailored packaging requirements of the patrons. In addition, our professionals ensure safe packaging of the products.

Characteristic

• KL-506 is mainly composed of SUS304 chassis; belt conveyor; Split bottles, pneumatic clip bottle; rubber wheels; labeling head; Head adjustment etc. Use Siemens PLC, touch screen; servo motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability, comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count , Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown,AIarm Fault Location and Help Information.

• JBNEE : AC220\/ 50/ GOHZ $TE

Technical parameters

• Voltage Specifications : AC22OV 50/ 60HZ single-phase
• Power : 1,5kw
• Labeling Speed : 20-65/min
• Labeling Accuracy : 1 mm (except the error between adherend and label)
• Gas Source : 5MPa
• Suitable Container : 030-150 mm (Note: hand wheel adjustment, replace the disc)
• Suitable Labels : label height:l5-135mm
• Label Specifications : diameter Max 320 mm, 76 mm paper roll inner diameter

Usage : KL-506 Fixed-point Automatic Labeling Machine is suitable for round container labeling. The body is small so suit for the narrow area, also can be wirings to production line
Note

• Labeling speed for reference only depending on the bottle-shaped subject to the actual test

• Special specifications bottle can be customized.
