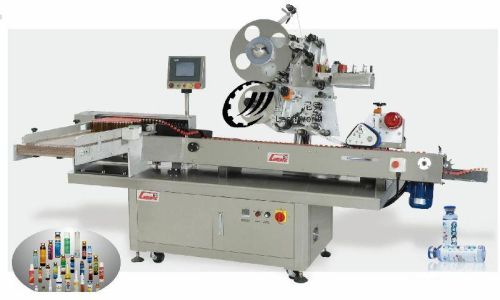

KL-800 Automatic Horizontal Labeling Machine

We are capable of make on-time deliveries of the product range that we keep safe in our massive warehouse. We have superior storage capacity to safely store the extensive product range that we offer. Our massive and well-maintained storage space is well-connected with the shipping unit.

Outline : KL-800 High-speed Horizontal Automatic Labeling Machine is particularly suitable for oral liquid, water injection (ampoules), solid plastic etc,
also suit for the bottle which is not easy to stand and walk labeling . Theoretical speeds up to 1200 times per minute, mainly used in cosmetic, chemical, medical and other industries.
Characteristic

• KL-800 is mainly composed of SUS304 chassis; chain plate conveyor belt; Split bottle screw; roller conveyor belt; host head; head adiustment etc. Use Siemens PLC, motion control module, touch screen; servo motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability; comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count , Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown,AIarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC220V 50/ 60HZ single·phase
• Power : 2.4KW
• Labeling Speed : 100-600 bottles /min
• Labeling Accuracy : 0.5mm (except the error between adherend and label)
• Printer with a gas source: 5MPa
• Printer Speed: more than 100-450/min
• Suitable Cuntainer: length 25-95 mm, diameter 12-30 mm
• Suitable Label: height 20-80mm, length 25-90 mm
• Maximum Label Supply: D420 mm, paper roll inner diameter76 mm
