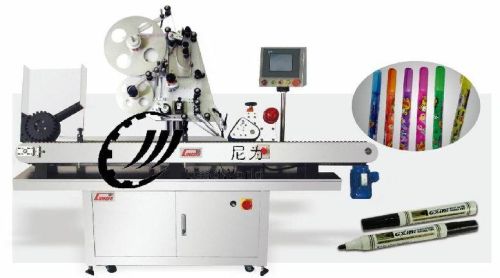

KL-801 Automatic Horizontal Labeling Machine

Rely on us to buy the best in class KL-801 Automatic Horizontal Labeling Machine; we are a notable Supplier in this domain. Our well-structured warehouse is the reason behind the safety of the products we offer. Moreover, we have installed advanced amenities essential for the safe storage of the lot.

Usage : KL-801 Horizontal Automatic Labeling Machine, especially suitable for pens, glue, etc., and the bottle which is not easy to stand and walking labeling.

Characteristic

• KL-801 is mainly composed of SUS304 chassis; automatically loading materials; roller conveyor belt; host header; head adjustment; Sponge wheel etc, Use Semens PLC, Motion control module, Touch screen, servo motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability; comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function : Product Count, Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown, Alarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC220V 50 / GOHZ single-phase
• Power : 1KW
• Labeling Speed : Max 100-400 bottles /95*
• Labeling Accuracy : 0.5mm (except the error between adherend and label)
• Printer with a gas source : 5MPa
• Printer Speed : 100-450 bottles/9%l*
• Suitable Container : length 25-95 mm. diameter 12-30 mm
• Suitable Label : height 20-BOmm, length 25-90 mm
• Maximum Label Supply : 0420 mm, paper roll inner diameter 76 mm

Nate

• Labeling speed rei reference only, depending nn the nemeshapeu, subject rc the actual resi.

• special specifications bottle can be customized.
