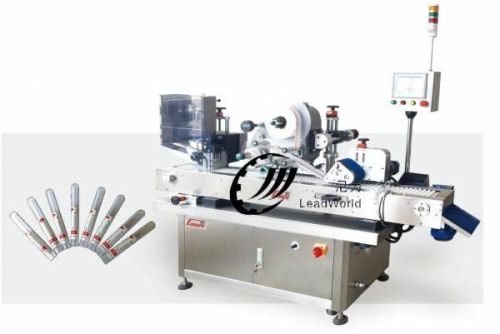

KL-802 Automatic Horizontal Labeling Machine

We are capable of make on-time deliveries of the product range that we keep safe in our massive warehouse. Along with a spacious warehouse, our efficient Warehouse Management System helps us in keeping a track of all the products. We stringently maintain inventory by recording warehouse transactions and delivery of goods.

Characteristic

• KL-802 Automatic Horizontal Roll Type Labeling Machine, is mainly composed by SUS304 Chassis, Chain plate conveyor belt, Split bottles screw , Roller conveyor belt, rejection host head, Head adjustment, etc. Adopt Siemens PLC, Touch screen, servo motor as the main components,controI devices run at high speed. Equipment safety, efficiency, and stability: comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count, Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown, Alarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC220V 50/ 60HZ single-phase
• Power : 1kw
• Labeling Speed : 100-350 bottles / min,
• Labeling Accuracy : 0.5 mm (except the error between adherend and label)
• Gas Source : 5MPa
• Suitable Container : L 25- 95 mm , D12-30 mm.
• Suitable Labels : label Height 20-80mm, L 25-90 mm
• Label Specifications : diameter Max 320 mm, 76 mm roll paper inner diameter

Usage : KL-802 Automatic Horizontal Roll Type Labeling Machine, It is especially suitable for Labeling of the Pen, Solid glue, Tube, etc bottle which is not easy
to stand and walk.
Note :

• Labeling speed for reference only, depending on thehome-shaped, subject tn the actual test.

• Special specifications bottle can be customized.
