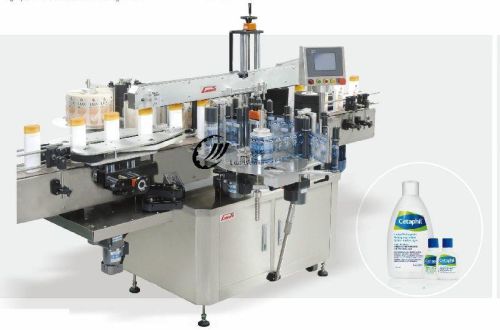

KL-900 Double Sided Automatic Labeling Machine

We frequently keep a check on the storage space to ensure that it is well-maintained by the experts. We have installed the latest machines and leading technologies to save products from spoiling. We are capable of make on-time deliveries of the product range that we keep safe in our massive warehouse.

Outline : KL-900 High»speed Double-sided Automatic Labeling Machine is suitable for flat, square, round, tapered, flat plastic or glass container, posted leaflets in the bottle sided and three-sided, double sheet sided leaflet sided label. Used in the food, cosmetic, chemical, medical and other industries.
Characteristic

• KL-900 is mainly composed of SUS304 Chassis; Chain Plate Conveyor Line; Separation Correction; Synchronization Crimping; Dual-head; universal Adjustment Sponge Wheel and other institutions .use. Siemens PLC, touch screen; senro motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability; comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count , Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown,AIarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC220V/38OV, 50/60HZ single phase
• Power Consumption : 3,7Kw
• Labeling Speed : 40-300 pcs/min
• Labeling Accuracy : x 1 mm (except the error between adherend and label)
• Printer with a gas source : 5Mpa
• Suitable Container Range : L15-150 mm, W10-100 mm, H40—35O mm
• Label Size Range : height 15-180 mm
• Label Diameter Range : D42O mm, paper roll inner diameter 76 mm
• Tab Spacing :3-4 mm
• Spacing between label edge and bottom of paper edge : 2mm
