Contact Suppliertransparant gauge glass
It is also named Sight Glass,Reflex Glasses,Level Gauge Glass,Spares for level gauge,Boiled Gauge Glass,Boiled Parts,ect

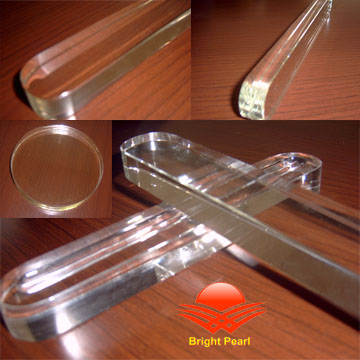

Level Gauge Glass is made from Borosilicate with toughened process.
It is used in lever gauge in boiler for water position.
The category is as follows:
1) Three tendons (four grooves)
2) Two tendons (three grooves)
3) Plan transparent
Dimensions
1) Reflex glass, available size:
400 x 34(30) x 17mm, 370 x 34(30) x 17mm, 340 x 34(30) x 17mm
320 x 34(30) x 17mm, 300 x 34(30) x 17mm, 280 x 34(30) x 17mm
250 x 34(30) x 17mm, 218 x 34(30) x 17mm, 190 x 34(30) x 17mm
165 x 34(30) x 17mm, 140 x 34(30) x 17mm, 115 x 34(30) x 17mm
The other size is optional or according to the requirements of customers.
Working temperature: 260 degree C, Working pressure: 4.0MPa
2) Transparent plane (without grooves)
The available size same as reflex glass.
Working temperature: 260 degree C, Working pressure: 8.0 MPa
