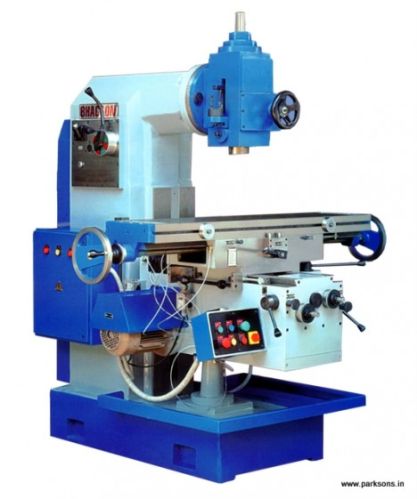

Knee Milling Machine

• Highly versatile machine capable of performing complex operations
• Table has 3 nos. T-Slots, with a graduated scale to obtain exact angle up to ±45º
• Working pressure of the table lead screw is through pressure-thrust bearing
• The heavy knee is made as a box and rests on a vertical column equipped with thrust bearings
• Hardened & ground gears, arbors, spindle and shaft
• The vertical head can swivel ±90º

• Bigger motor available on request

Accuracy: As per IS Standard 2201
Surface milling by automatic longitudinal movement and manual vertical displacement is

• 0.005mm/200mm on flat surface
• 0.01mm/200mm on perpendicular surface

Application:

• Machining flat surfaces, contoured surfaces, surfaces of revolution, external and internal threads, and helical surfaces, of various cross sections
• Face Milling, Perpendicular Milling, Slotting, Rack Cutting, Hobbing, Gear Cutting, Drilling, Boring

Accessories:
Swivel Base Vice, Rotary Table, Collet Adaptor, Collets, Clamping Kit, Long Arbor, Stub Arbor, Digital Read Out
