    MVA Knife Gate Valve, Pressure : 150PSL

    MVA Knife Gate Valve, Pressure : 150PSL

    Get Latest Price
    • Brand NameMVA
    • Pressure150PSL
    • Size50NB – 600NB Above 600NB Consult Factory
    • Gland FollowerCast Iron, Cast Steel, Ductile Iron, CF8, CF8M
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Multitech Valves & Automationverified-icon
    location Ahmedabad, Gujarat
    4.2/5fill iconfill iconfill iconfill iconhalf icon(5)
    View Number
    • calendar Member Since 8 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 24BDJPM0983M1Z4

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Size50NB – 600NB Above 600NB Consult Factory
    • Pressure150PSL
    • Brand NameMVA
    • Body, ChestSolid One Piece Casting of Cast Iron Fg 260 Cast Steel Gr WCB, CF8, CF8M
    • EndsLugged
    • Size Range2″ to 24″
    • Gland FollowerCast Iron, Cast Steel, Ductile Iron, CF8, CF8M
    • NutBrass
    • PortStandard [Round] Optional V Port, Diamond Port
    • Screw SpindleAISI SS 304, 410, 304, 316
    • GateAISI SS 304, 316, 316L, 317, 317L
    • YokePlate Type of MS
    • SeatIntegral to Body, Soft, Optional.
    • Gland PackingPTFE, PTFE Impregnated
    • Hand WheelCast Iron, Cast Steel, Ductile Iron
    • Temperature0°C – 1200°C

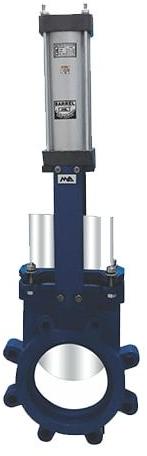

    “MVA” offers a pneumatic cylinder-operated knife edge gate valve.



    MATERIAL SPECIFICATION AND GRADES

    • Cast Iron: IS 210 Gr Fg260
    • Cast Carbon Steel: ASTM A216
    • Stainless Steel: ASTM A351 Gr CF8, ASTM A351 Gr CF8M
    • HAST C: Hast Alloy Gr C.



    TEST SPECIFICATION

    • Body Shell Test: As Per MSS SP – 81 Norms 10 kg/cm² Working Pressure 6kg/cm²
    • Seat Leakage Test: Metal Seated Valves as Per MSS SP 81 Norms & Tappi 405 Soft Seated Valves Zero Leakage


    Details

    BODYGATESPINDLEGLAND
    CF8AISI SS304ISI SS304CF8
    CF8MAISI SS316ISI SS316CF8M
    HAST ‘C’HAST ‘C’ISI SS316CF8M
