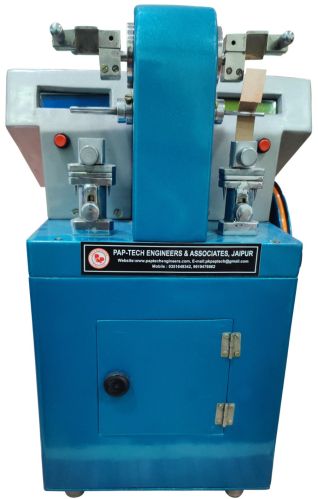

Kohler Molin Type Folding Endurance Tester

Description
It is used for determining the folding endurance of all kinds of Paper, Paperboard, Foil & Films with a standard folding speed per minute. Kohler Molin Type Folding Endurance Tester Loading clamps of dead weight type giving standard load of 800 gm during the test provided along with Five Figure impulse Counter having hold and zero setting.

The Equipment is used for determining the Folding Endurance of all kinds of paper, cardboard, foil and films up to 0.15 mm. The folding effect on the specimen, loaded by weights, is exerted by the oscillating and rotating movement of the upper clamps.

Standards:

As per TAPPIT-423, ISO 5626.

Technical - Specification :

• Two specimens can be tested simultaneously. The number of folds is registered by two counters, which are stopped automatically, when the specimen breaks.
• Folding clamps quick grip type of stainless steel for a strip width of 15 mm.
• Absolutely vibration free runs of folding clamp, due to the absence, of a conventional geared drive.
• Loading clamps of with weight bars and weights steps of 50 g give loads between 1.96 and 9.32 N. Standard load according to SCAN and ISO is 7.85 N (corresponding to a weight of 800 g).
