Contact SupplierProduct feature

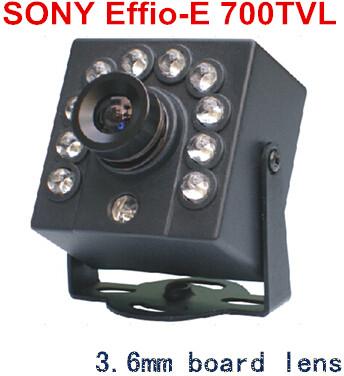

sony ccd
built-in 3.6 mm board lens,3.7mm lens add 1usd more
convenient installation,suitable to install in the lift and the corridor, etc
osd menu
weight: 0.2kg
product specification
model kw-4565rv
ccd or cmos sensor + dsp sony icx811ak + effio-e (4140)
pixel pal:976(h)*582(v)
ntsc:976(h)*492(v)
tv lines 700tvl
signal system palntsc
lens optional 3.6mm lens
minimum illumination 0.5 luxf1.2
sn >48db
shutter speed 150(160)_1100,000(sec.)
gamma correction > 0.45
synchronous mode internal synchronization
white balance auto white balance
video output 1vp-p,75ohm,bnc
power dc12v,1000ma
infrared wavelength 850nm
weight 0.2kg
temperature (-20°c ~ +50).
