Himakshi KP-40 Kerb Paver Machine

Get Latest Price

Brand NameHimakshi
Country of OriginIndia
EnginePetrol/Diesel Diesel engine: GREAVES Petrol Engine: VANGUARD
2. Wt. Of Mould + Accessories78 Kgs + 55 Kgs
Supply TypeManufacturer, Supplier
Preferred Buyer Location India only

View More Details

Send Enquiry

Company Information

Himakshi Road-Cons Equipments Pvt. Ltd.

Mahesana GIDC, Mahesana, Gujarat

4.6/5

(18)

View Number

Member Since 24 Years
Nature of Business Manufacturer
GST No. 24AABCH1789B1ZW

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of OriginIndia
Brand NameHimakshi
List of ConsumablesPetrol/Diesel , Hyd. Oil, Engine Oil, Gear Oil & Grease
Minimum Radius of Kerb2.4 Mtr
Slump RangeZero Slump
2. Wt. Of Mould + Accessories78 Kgs + 55 Kgs
Weight with Mould915 kg
Material Feeding (Concrete) SystemBy Transit Mixer/Tractor Trolley (Flat Bed Truck) or By manual
Strokes/Min25 Max.
Laying Capacity (W X H)600 X 475 mm & 175 X 475 mm Min
Length (With Mould)2715 mm
Life of Engine (approx)Reconditioning After One Year
Fuel ConsumptionDiesel – 1.6 Lit/hr Petrol – 1.0 Lit/hr
AccessoriesString line Winch , Finishing Tools
Height930 mm
Hydraulic Tank Capacity6.5 Ltrs
Steering ControlAuto/Manual
Charge Hopper Capacity0.21
Form 16Last 3 years Income Tax returns (self and business)
MouldsBolt on M.S. Moulds to Customer Specification
DrivesMain Drive : 5/8” Pitch Duplex Chain / Hydraulics-V Belt
Hydraulic PumpVariable Displacement Axial Piston Pump
Life of Mould (Approx)50 – 75 Kms
Recommended Spares to Be Kept in StockMicro Switch, Toggle Switch, Pilot Lamp, Holder with bulb, Air Filter , Oil Filter, Chain
EnginePetrol/Diesel Diesel engine: GREAVES Petrol Engine: VANGUARD
ModelKP-40
Size of Tyres4.00 X 8 – 6 Ply – 4 Nos.
Length (Without Mould)1945 mm
Compaction MethodBy Ramming Mechanism
Height ControlAuto/Manual
Accuracy+ 3 to 5 mm
Laying Speed55 Mtr / Hour
Width1155 mm
Solenoid Valves12 V.D.C.
3. Changing Time of Mould30-35 Minutes
1.Mould Size770 x 760 x 610 mm
Fuel Tank CapacityDiesel – 5 Ltrs, Petrol – 7 Ltrs
Life of Machine (Approx)4 – 5 Years
Last 6 Months Bank StatementsLast 3 years Profit /Loss and Balance Sheet

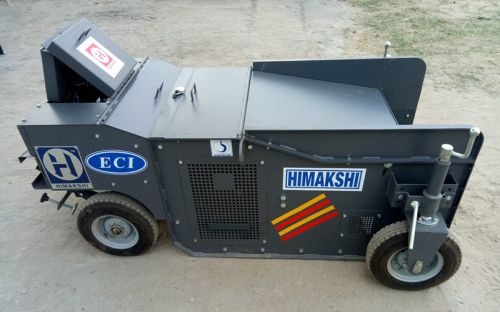

The Kerb Paver Machines is a compact extrusion type equipment for casting continuous Kerbs, channel and other concrete formation used in Road Construction. Our trusted vendors provide us quality approved material that is used for making these machines.

Low Maintenance with Long Work Life Equipment. Technically advanced features cut off the need for more mechanical drive components. Hence low are the maintenance costs and longer is the shelf life of our machines.

Designed for Dynamic and Easy Operation. Machine is designed with sophisticated sensors and easy fingertip controls for rapid, automated and easy adjustment of speed, vibration and other operative features.
