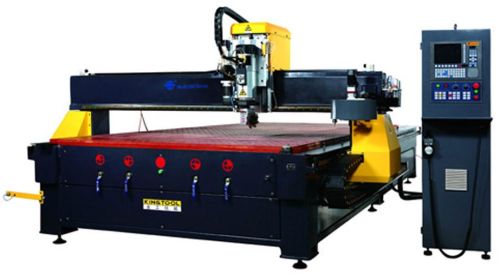

Kt-204r Panel CNC Routing Machining Center

We are offering kt-204r panel cnc routing machining center.
1. Deep-processing, cutoff, grooving, carve and milling of various aluminum panel, aluminum composite panel, pvc panel, steel plate and composite plate with the most economical and reasonable method.
2. Full automatic blade system of 6 service positions, which saves time and labor; cutter head cooling system is provided, so as to adapt to needs of processing various materials.
3. Large-absorption vacuum worktable makes it convenient to install, and once installation of large-area sheet material can be realized.
4. Germany pa computerized four-axis industrial digital control system makes the function of processing three-dimensional curved surface realized. Tft lcd of 10.5 inch, special hard disk with massive storage capacity and usb interface are also provided.
5. Windows nt professional operating system.
6. R j45 10/100 mbps network connection.
Main technique parameter
1. work area: x/y/z axis 4020/2020/200mm
2. working accuracy locating
repeat locating
drilling sag
cylinder
cutting surface roughness +/-0.08mm
+/-0.02mm
0.1/100mm
0.1mm
ra12.5um
3. speed of feeding: x/y/z 42/32/18m/min
4. blade exchange time 20 seconds
5. spindle: power/rev 5.5kw / 24000 rpm
6. servo motor(yaskama): x/y/z/c/r (tools store) 0.85+0.85/0.85/0.85/0.4/0.4 kw
7. max. Collet diameter ø16
8. voltage/total power 380v50hz/10kw
9. overall dimension of lather (l×w×h) 4900 x 3200 x 1755mm
10. overall dimension of control box (l×w×h) 600 x 1400 x 1800mm
11. power supply 20kva
11. operation air pressure 0.6~0.8mpa
