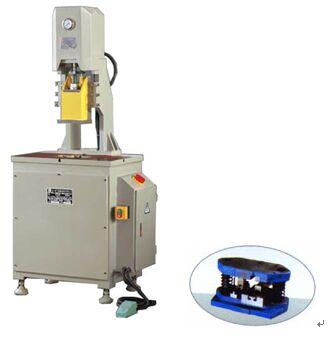

Contact SupplierWe are offering kt-373b hydraulic press punching machine.
this machine is equipped with aluminum profile single mold and combination mold, capable of complete punch machining of all kinds of bores and slots of sliding window or casement window. The equilibrium of that machine is good, and the accuracy is high. It is easy to change the combination mold. It is the ideal equipment for aluminum window profile processing.
main technique parameter
1. punching thickness 1-2.5mm
2. max. Punching quantity 4-8 pieces
3. dffective worktable area (lxw) 720x330mm
4. max. Punching travel 60mm
5. oil cylinder diameter 80mm
6. the piston travel of oil cylinder 60mm
7. the max. Sealing height 240-300mm
8. oil tank capacity 40l
9. motor power 2.2kw
10. rated oil pressure 16mpa
11. max. Punching shearing force 10000kg
12. overall dimension (motor) 720x450x1785mm
13. weight 600kg
