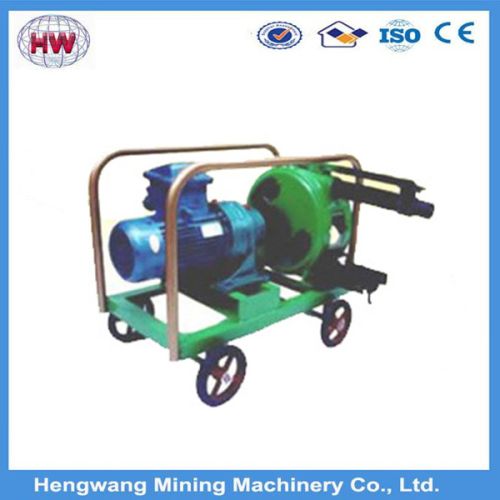

KUBJ-1.8 Squeeze Mortar Pump

We offer Squeeze mortar pump.
KUBJ-1.8 squeeze mortar pump is a new type of mining flame-proof special equipment. It can transport slurry or grouting cement mortar, etc.
KUBJ-1.8 squeeze mortar pump applicable to buildings, mines, tunnels, reservoirs, Bridges and other projects in the spraying external walls and various skin coat, bottom pressure grouting,stress after pressure grouting, mortar conveying, cooperate driver pressure grouting foundation construction,
Extrusion pump with secondary mixer, slurry after a stir, then through secondary stirring, won't produce segregation, precipitation phenomenon, prolong the life of the extrusion tube, pipe, improve work efficiency.
Item Data
Ash content m³h 1.8
Maximum working pressure（Mpa） 1.5
Vertical height of pump（m） 20
Horizontal conveying distance（m） 60
Motor power（Kw） 2.2
Power source voltage （V） 380660
Weight（Kg） 225
Dimension L×W×H  (mm) 900×860×740
