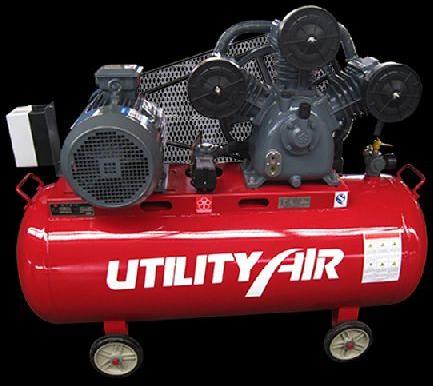

KW7508 Electric 8 Bar Piston Air Compressor

The output terminal of the crankshaft of kw7508 electric 8 bar piston air compressors is added with newly designed small end cover, and the respirator is installed at the place of small end cover, to increase the structure of the oil baffle plate and greatly reduce the oil fleeing phenomenon. K series technical parameters                                                                                                            model parameters unit kv5508 kw7508 kw10008a air displacement m³/min 0.48 0.71 1 discharge pressure mpa 0.8 0.8 0.8 crankshaft speed rpm 860 820 750 cylinder no. 2 3 3 cylinder diameter mm 90 90 100 piston stroke mm 65 65 72 air receiver volume l 160 220 250 motor power kw 4 5.5 7.5 cooling method air cooling whole weight kg 180 220 260 length mm 1370 1450 1650 width mm 580 625 625 height mm 1080 1200 1260 certificates.
