L3 Gigabit Managed Switch

We are offering gigabit ethernet switch.

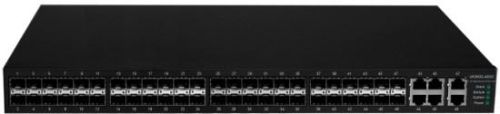

L3 gigabit managed switch uk5600-48gc is a standard layer 3 non-blocking gigabit managed fiber switch. This product, based on high-performance asic chip technology, with the modular structure design, provides 48 1g ports, 6 multiplex 1g electrical port, having a capability of multilayer switching and wire-speed routing forwarding. At the same time, this product can provide a complete ipv4/ipv6 routing, including tunnel and ip multicast. The user can set the various functions of switches through the web, snmp etc. Uk5600-24gc also supports l2 and l3 vpn, dos defense, static routing, rip, ospf, bgp, pim-sm, pim-dm, dvmrp, nat, qos, rstp, mstp, vlan, port security, storm suppression, acl access control and other functions, very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.product features:1. High performance(1) with 192g backplane bandwidth(2) hardware routing, wire-speed l3 switching packet forwarding rate of 142.848mpps(3) can be deployed in the core of man(metropolitan area network) , and provides several final 1 km technology2 . Safety(1) provide dos, distributed denial of service, deception and virus defense(2) support ieee802.1x, provide port-based user authentication, network shield, safety control, and strategy control technology(3) restrict maximum number of connected hosts port, with multi-channel ethernet interface binding, increasing bandwidth and system redundancy(4) powerful acl, support for l2-l4 layer data filtering(5) support qinq function(6) strategy control list, flow regulation3 . Easy to use and maintain(1) use clustering technology, support multiple device stack, with a unified ip address to carry on centralized management to save address resources(2) a variety ways of management via web, snmp etc.(3) support xmodem protocol, can be used to upgrade software and bootrom by tftp/zmodem (4) support dhcp server and relay functions, dynamic allocation of ip address(5) support sfp+, also downward compatible xfp(6) provide redundant power supply, fast failover and fast connection, greatly increasing system reliability4 . Powerful flow and broadcast management(1) automatically detect and suppress broadcast storm, support for igmp packet detection, effectively restrict broadcast packets flooding(2) support full duplex mode and half duplex mode flow control(3) support ethernet interface 1m step rate limit(4) advanced buffer management, support 802.1p protocol, each port 8 transmit queues mapping 8 priority of 802.1p(5) support ip multicast and qos5 . Kinds of routing strategy(1) support static routing(2) support rip v1/v2, ospfv2, bgpv4 and other dynamic routing protocol(3) support pim-sm, pim-dm, dvmrp and other multicast routing protocol(4) mpls-based exchange routing and ecmp-supported routing balanced loading
product technical parameters:
the product model uk5600-48gc
basic characteristics
fixed port 48 1g ports, 6 multiplex 1g electrical port,
the backplane bandwidth 192gbps
packet forwarding rate 142.848mpps
processor risc 600mhz
flash memory capacity 8mb
the memory capacity 64mb, max. 512mb
address table 32k
queue buffer 64mb
product characteristics
spanning tree support stp, rstp, mstp
support pvst/pvst+
vlan support port-based vlan
support mac-based vlan
support 802.1q labeled vlan
upport for super vlan
support for private vlan
support for the gvrp dynamic vlan configuration support qinq and flexible qinq
support for voice vlan
flow control standard-based ieee 802.3x flow control using ieee 802.1qbb priority control flow support car function
broadcast control suppress broadcast storms, reaches a critical point to stop sending
multicast control igmp snooping multicast packet automatically monitoring
multicast routing igmp v1/v2/v3, mldv2
pim-sm, olink&pim-dm
dvmrp (distance vector multicast routing protocol) gmrp (multicast dynamic registration protocol)
port binding each set of up to 8, while supporting128 grouplacp dynamic or static aggregation
port mirroring support flow classification-based mirroring support port mirroring
stacked the hard stack 16, soft stack 32
using a unified ip address to carry on centralized management to save address resources
routing management static routing rip v1/v2, ospfv2, beigrp (compatible with cisco eigrp), bgpv4, isis, bgpanti-virus intelligent routing function
strategy routing support ip-based strategy routing
the proxy function support proxy arp, dns proxy
redundancy backup support for vrrp, hsrp hot standby router protocol
characteristics of dhcp support dhcp server, dhcp client and dhcp relay
the nat function support the static or dynamic nat address translation function
safety characteristics ieee 802.1x port certification, pki certificationport security (port security) functionhardware support for ip acl acl acl, mac, vlanhardware support for port-based user ip+mac+vlan id+ user account a variety of factors bundlingsupport ip source guardsupport web interface user authenticationremote radius, tacacs+ certificationuser classification management and password protection net shield technologysafety control technologypolicy control list
quality of service ieee 802.1qau congestion mechanismeach port 8 send queue mapping 802.1p 8 prioritywred, wfq, sp and fifo queue scheduling algorithmbest-effort servicedifferentiated servicestrict priorityweighted round robinfirst come first servedtos to markrts
network management snmp v1/v2/v3rmon (1,2,3,9 group)telnetweb interfacesupport for cluster managementsupport sshsupport for pdp (compatible with cisco cdp.)to support the fan, temperature, system log, hierarchical alarm
physical characteristics
appearance size 442mm ã� 316mm ã� 44mm
power characteristic ac 110-240v adaptive, 47-63hz, 1a/230v, rps power hot backup
max power 80w
indicator power indication, system instruction, connecting / transceiver instructions
environment humidity / temperature 0-50 � operation,-40-70 � preservation,0-90% no condensation.
