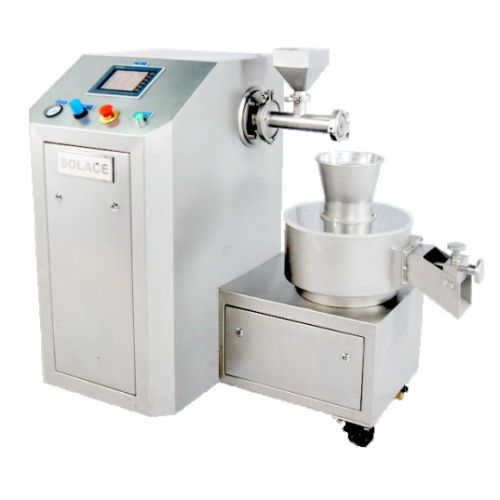

Lab Extruder Spheronizer

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Unique Extruder Spheronizer comprising of charging hopper, extruding chamber, partial reduction device and screen plate. The lumps are fed from charging hopper. The material flows into extruding....

View More Details

Send Enquiry

Company Information

Solace Engineers Marketing Private Limited

Tandalja, Vadodara, Gujarat

View Number

Member Since 20 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Unique Extruder Spheronizer comprising of charging hopper, extruding chamber, partial reduction device and screen plate.

The lumps are fed from charging hopper. The material flows into extruding chamber and passes through screen for extrusion. The lumps are converted into cylindrical shape. Extudants of different length which drops into spheronizer are cut by centrifugal turning mesh plate and are converted into short spherical granules.

Advantages

Perfect production efficiency to achieve good density equal extrusion.
Wide range of mesh plate to achieve cylindrical extrudants.
PLC controlled panel with perfect interlocking.

Main Parameter (as reference)
Productive Capacity	g	500-5000
Volume Flow	m3/min	5.6
Pressure	MPa	0.023
Power	V/Ha	415	Hz	50-60
Blower	Kw	2.2	re/min	2900
Heater	°C	From 15°C~120°C	Kw	3.75-5.6
Compression Air	m3/min	0.4-0.6	kg/hr	0.65
Motor	Kw	0.75	rev/min	2900
Dimension (L x B x H)	mm	1650 x 820 x 2400
Weight	kg	539
