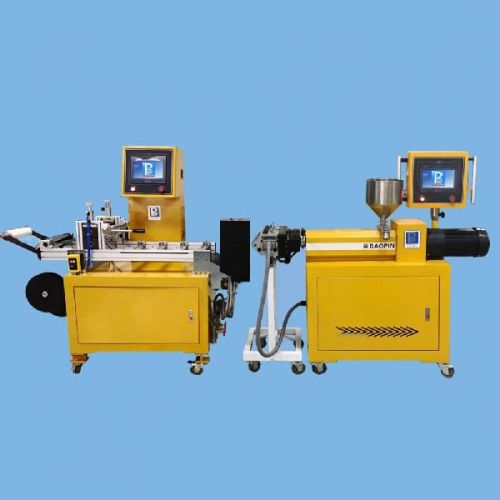

Lab Film Casting Machine

Lab film casting machine / PLC control This lab film casting machine is suitablefor all kinds of general plastics such as PE.PP.PS.PC.PET.ABS.PVC. It isequipped with the horizontal and vertical extruding casting cold roll can simulatesingle stretch film and sheet extrusion production process, etc. The lab film casting machine can be usedfor thin film preparation and also can be used for thicker sheet. This machineis the best laboratory equipment for extruding forming film. Parameters: 1. Single screw extruder  Screw diameter  Φ 20 mm  Length diameter ratio  1 : 25  Screw rotation speed  0 - 95 rpm frequency control  Melt pump  10 cc/evr  Power supply                  3 ∮ , five lines 2. Cast cold roll unit and winding system  Die  T hanger type  Die-lip width  300 mm  Cold roller size  Φ 140  X L320 mm  Rubber clip roll  Φ 40  X L320 mm  Wheel size  Φ 40  X L320 mm  Winding roll size  Φ 100  X L300 mm  Traction speed  15 rpm adjustable Features ■  Can be used for general plastic products such as PE,PP, PS, PC, PET, ABS, PVC ■  Can connect with single screwextruder(20/25/30/45mm) ■  Thanger type, width range from 200~300mm; the max film width around 300mm, min.film width around 100mm, can use for making film which width less than 300mm
