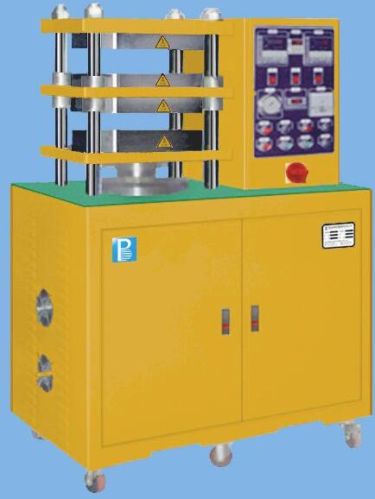

Lab Tablet Hydraulic Press Machine

Lab tablet hydraulic press machine / equipment control equipment lab tablet hydraulicpress machine is equipped with led indicator, press key set input, the valueindicate output. Lab hydraulic press machine can be used  with detection of material gel (fish eye ), black spot and stain, physicalproperties test, etc.  thematerial is placed in the casting mould and clamped between theelectric-heating flat plates to apply pressure and temperature, making thematerial shape, testing and serving as the basis for the ingredient of massproduction. Parameters:  capacity  20/30/50t (optional)  temperature range  normal temperature ~ 300 ℃  pressing plate size    300 x 300 x 50 mm  distance of pressing plate  70 mm  oil pressure medium  mobil 32# antfreeze hydraulic oil  power supply  3 ∮, five lines specification: 1.controller: led indicator, press key set input, the valueindicate output. 2.heating method: electro-thermal tube 3.cooling method: tap water cooling 4.working layer: two layers. The upper dieplate heating, the lower die plate cooling. 5.oil pressure system: gpy oil pump driveshigh-performance electric fluid injection and the non-resistance fuel tankcarries out constant speed control mode with the functions of automaticcompensation and time delay stopping of the fuel tank. Features ■  the pressure is optional:20 tons, 30 tons and 50 tons. ■  four high-strength
