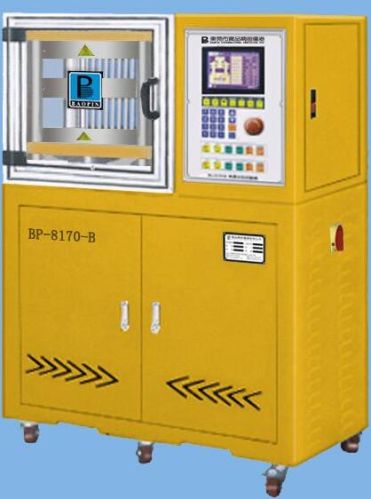

Lab Tablet Hydraulic Press Machine

Lab tablet hydraulic press machine / PLC control Lab tablet hydraulic press machine can beused for material performing, color matching, blending and sample preparation. This PLC control lab tablet hydraulic press is equipped with PLC program control color touch screen. The human-machineinterface operating system can set pressure, temperature, time and exhaustingfrequency. The vulcanization process is instantly displayed and monitored. Themould pressing procedure is set to be completed fully automatically. Parameters:  Capacity  20/30/50T (optional)  Temperature range  Normal temperature ~ 300 ℃  Pressing plate size    300 X 300 X 50 mm  Distance of pressing plate  100 mm  Oil pressure medium  Mobil 32# antfreeze hydraulic oil  Power supply  3 ∮, five lines Specification: 1.Controller: PLC programmable color touch screen has human-machineinterface. All the operating parameter can  be set and controlled at will. Mouldpressuring process and vulcanization curve can be displayed dynamically. 2.Heating method: Electro-thermal tube 3.Cooling method: Tap water cooling 4.Working layer: One layer. The upper die plate and lowerdie plate both have heating and cooling functions.5.Oil pressure system: The closed-loop control system of proportionhydraulic flow valve with the functions of automatic compensation and timedelay stopping of the fuel tank. Features ■  The standard model
