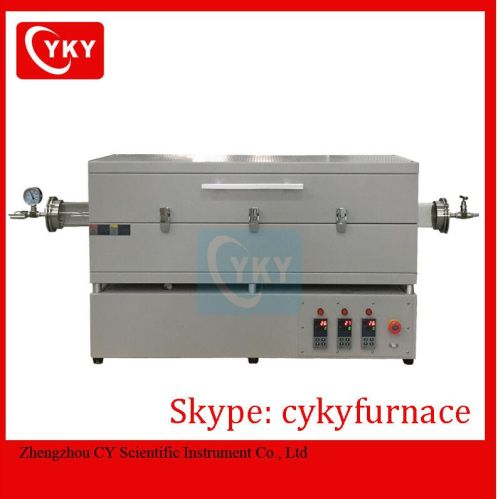

We are offering lab three zone tube furnace.
Description of the three zone tube furnaceï¼
1200â three zones tube furnace is mainly used for preparation of rare earth, electronic lighting,crystal annealing,biological ceramics,electronic ceramics, special alloy, magnetic materials, precision casting,vacuum sintering of metal heat treatment and other industries, protective atmosphere sintering, vacuum coating, cvd experimental measurement,material composition, etc
technical parameters of the three zone tube furnace
display led
limiting temperature 1200â
working temperature â¤1150â
heating rate suggestion 0~20âmin
temperature zone three
temperature accuracy ±1â
chamber size Ï60Ã1400ï¼mmï¼
heated length 220+440+220mm
length constant temperature ï¼ât=3â) 100+200+100mm
heating element aludirome
thermal couple k type
rated power 5 kw
working voltage ac 110v-480v 5060 hz
temperature control pid automatic control via scr power control
heating curves 30 steps programmable
preset curve 1
chamber material alumina fiber
outside size 1060Ã470Ã610 mm
warranty 12 month (exclusive wearing part)
