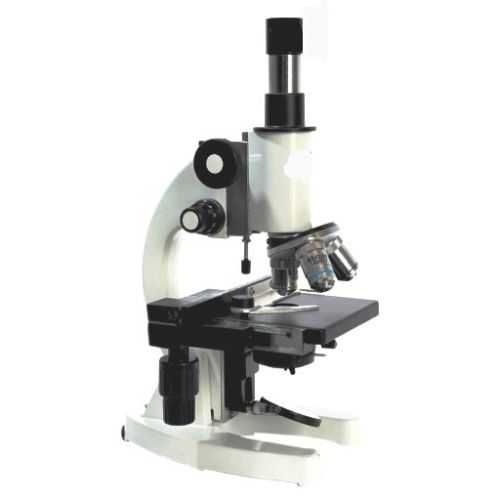

LABBY Senior Medical Microscope

Brand NameLABBY
NosepieceTriple revolving nosepiece is provided with positive click stop for proper centring.
illuminationIllumination through a 50 mm diameter Plano concave mirror mounted on gimbals mount.
EyepiecesWidefield 10x and huygenian eyepieces of 15x
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Brand NameLABBY
NosepieceTriple revolving nosepiece is provided with positive click stop for proper centring.
illuminationIllumination through a 50 mm diameter Plano concave mirror mounted on gimbals mount.
EyepiecesWidefield 10x and huygenian eyepieces of 15x
PackingStandard packing in Thermocol and carton box.
BodyInclined horizontal through 90 standard tube length of 160mm.
ObjectivesAchromatic objectives of 10x and 45x and 100x (Immersion oil, spring loaded)
Magnification100 x to 1500 x
CondenserMovable condenser is provided with iris diaphragm having 1.25

Details :

Focusing - Separate coarse and fine motion knobs with graduation on one side. Coarse movement by rack and pinion and fine movement by screw lever mechanics.
Mechanical Stage - Fixed square 125x125mm with brass mechanical stage to hold and move the side Properly for object centring.
