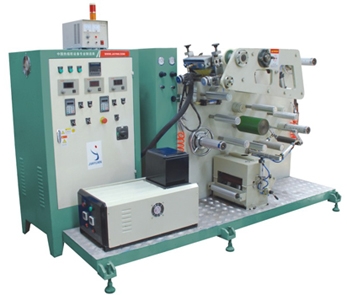

Label Coating Machine

We are offering (ce) Jyt-20 Label Coating Machine.
Product description
model jyt-20 mainly apply in label, adhesive tapes, slide fastener adhering, etcx.
product feature
1. Adopts single-arm structure for loading and unloading the material easily and can coat the material up to a width of 200mm,so it is a standard and ideal equipment for one-person operation. 2. Equipped with the tension controller of magnetic powder,you can obtain high production efficiency.
product specification/models
technical paramter: overall dimension 2100mm*950mm*1300mm(l*w*h) width of roller 240mm max.width of glueing 200mm max.diameter of base material 400mm diameter of paper core 76mm unwinding device 2sets rewinding device 1sets coating weight 15-120g/m² max,speed 50m/min max,power 2.5kw working pressure 0.2-0.7mpa
application
jyt-20 hot melt coating machine developed in the new century is especially suitable for the need of research, development and low product. Whether you want to test various thermosols or develop new prodcut, it will be your good assistant and a coating system with small investment and good benefit.
