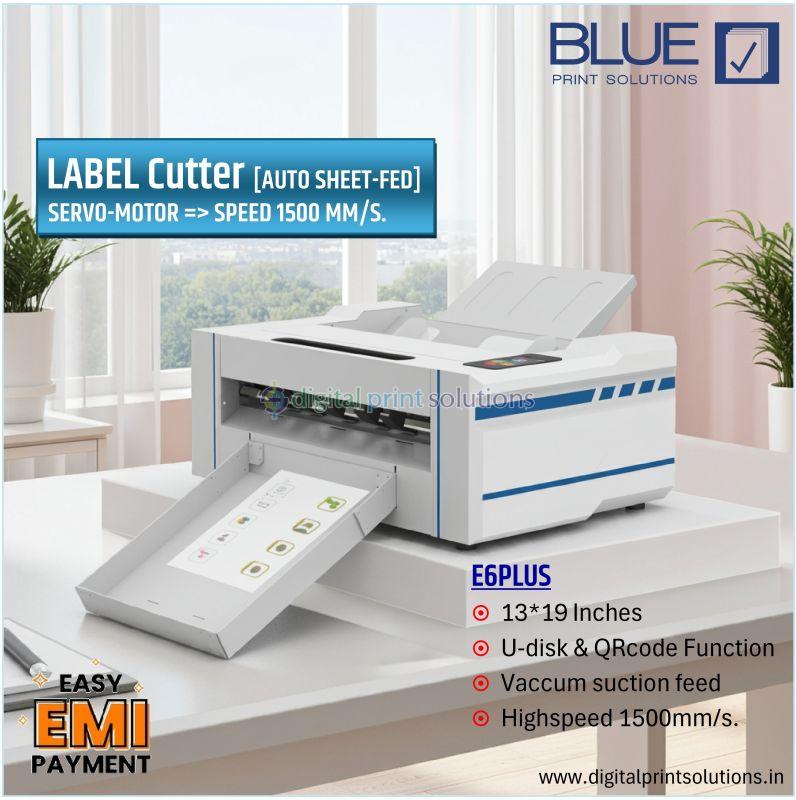

Label Cutting Machine (Servo Motor - Speed 1500mm/S)

₹ 1.90 Lakh / piece

Working Power150 W
InterfaceUSB/Udisk/Eathernetport/Wifi (Optional)
Package Dimension880*720*580mm.
Drive MotorX&Y DC High Power SERVO Motor
Supply TypeSupplier, Distributor, Importer, Trader
Preferred Buyer Location Anywhere in India

Company Information

Pendra, Bilaspur, Chhattisgarh

4.3/5

Member Since 13 Years
Nature of Business Retailer
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Camera positioning speed4s
Cutting Force5-1000g (Adjustable)
Gross weight66kg.
Control Pannel4.3inch Full Colourful Touch Screen
Main BoardHigh speed CPU, Optimal SERVO system
Accuracy0.025mm.
Model NumberE6 PLUS
Nos of Cutting HeadSingle Cutting Head
Max Cutting Area483*330mm (13*19 Inches)
Cutting MethodKiss cut, Full cut, Dotted cut, Creasing and drawing
Cutting Media TypesSelf adhesive, Cardboard, Coated paper, PVC, PET, Kraft paper etc.
Media Hold MethodDouble pinch roller, Vaccum suction
InterfaceUSB/Udisk/Eathernetport/Wifi (Optional)
Media wayAuto feeder
Working Power150 W
Package Dimension880*720*580mm.
Drive MotorX&Y DC High Power SERVO Motor

SERVO MOTOR STICKER HALF CUTTING MACHINE (LABEL CUTTER) comes with double pinch roller & vaccum suction for holding sheet, ensure the good cutting performance with twice cutting speed. It\\\'s have QR code working system for positioning, cut a mixed different files continuously. The 4.3inches full colourful touch screen which is smooth clock performance. The CCD camera scanning makes it more sensitive for QR code and mark positioning. Just a one key to calibrate the offset of camera. It can autofeed sheet in different size continously A4, A3, A3 Plus and customised size. You can put 200 sheets at a time in paper feeding tray. One cutting file can repeat 2000 times continuously with repeat function. It can be connect with the PC with Ethernet Port, USB, Udisk, WiFi. Heavy duty rubber feeding roller with big power which can feed thicker sheet smoothly. Adobe illustrator, Coreldraw plug-in, Signmaster, Surecut software are compatible software.
