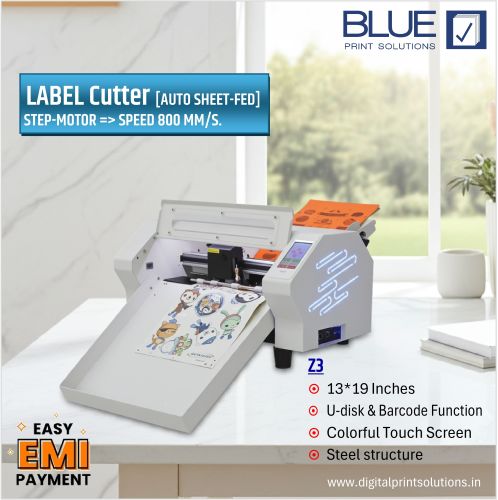

Label Cutting Machine (Step Motor - Speed 800mm/S.)

₹ 1.15 Lakh / piece

Brand NameBLUECUT
Media Hold MethodDouble Pinch Roller
Maximum repeat of files2000 Times
Main Board32-bit ARM7 CPU, 128MB, High speed catch memory
Supply TypeSupplier, Distributor, Importer, Trader
Preferred Buyer Location Anywhere in India

Company Information

Pendra, Bilaspur, Chhattisgarh

4.3/5

Member Since 13 Years
Nature of Business Retailer
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameBLUECUT
Control Pannel4.3inch Full Colourful Touch Screen
Accuracy0.025mm.
Maximum Cutting Area483*330mm (13*19 Inches)
Gross Weight33kg.
Drive MotorX&Y DC STEP Motor
Maximum Cutting Speed800mm/s STEP MOTOR System
InterfaceUSB / U Disk / Serial Port
Main Board32-bit ARM7 CPU, 128MB, High speed catch memory
Cutting TypeKiss cut and Full Cut
Cutting Media TypesSelf adhesive, Cardboard, Coated paper, PVC, PET, Kraft paper etc.
Maximum repeat of files2000 Times
Package Dimension810*700*360mm.
Media Hold MethodDouble Pinch Roller
Working Power150 W
Media WayAuto Feeder
Cutting Force10-1000g (Adjustable)
Feed Tray Capacity100 Sheets

STEP Motor Label Cutter which can feed different material continuously, having big paper tray and can repeat any cutting file 2000 times continuously. Smart Material Sensor in Feeding Tray. Automatic Contour Cutting function available which can cut any shpe of printed lables. High precision steel axis to ensure accuracy cutting. It have produce Cutting Force of 10-1000g (Kiss cut and Full cut). Three interfaces USB / USB / Serial port is available which support work with Flash Drive directly. U disk for offline working, no need to bring the computer everywhere or use long USB cables.
