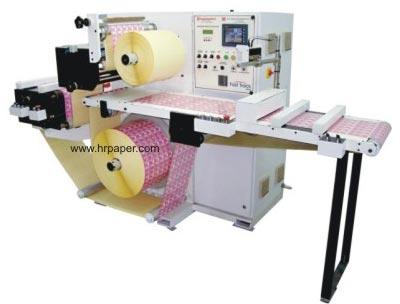

Contact SupplierWe are offering label inspection machine, label slitting machine. The label inspection & slitting machine is used for slitting and counting the labels. If missing label is there, then the label inspection & slitting machine will automatically stop working at the splicing table. The label inspection & slitting machine has servo technology motors, electronic control of speed, position and torque. Electronic web guide with ultrasonic sensor is also present in label inspection & slitting machine. User-friendly colored touch screen is there in label inspection & slitting machine for easing working programs.
| Working Width | 250 mm (also available in 330 mm & 400 mm) |
|---|---|
| Floor Space 250 mm | 9.5 ft. x 4ft. |
| Working Speed | 175 Mts. Per/ min |
| Max. Unwind dia | 600 mm |
| Max. Winding dia | 360 mm |
| Type of material | Paper Labels from 50 gsm to 200 gsm |
| Minimum Slit | 15 mm |
| Core ID at winding & Unwind | 3" (76 mm) Paper core |
| Power required | 4 HP 3 Phase (440V 50Hz) |
| Optional | Trim blower |
