SS Mechanical 100-1000kg Labeling Machinery, Certification : ISO 9001:2008

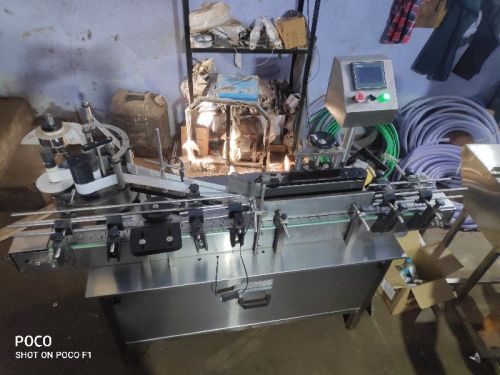

The Automatic Vertical SERVO Base Sticker Labelling Machine Model ASL-150 is one of the most user friendly. The Machine incorporates latest sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. The machine is suitable for Labelling on Bottles and other round objects made from Glass, Plastic, Aluminum, PET, HDPE, PP etc…It is capable of Labelling up to 120 units per minute depending on product diameter and label length.

The Automatic Models are equipped with “Roller Spacing Device” resulting in a simple no change parts system and eliminating the need of Feed-Worm or Star Wheel for uniform product separation. The Sticker Labelling Machine

MACHINE SPECIFICATION

Power:                         230 Volts (Single phase) AC 50 Hz.

Machine Dimensions:   1828mm. (L) X 610mm.(W) X 1200mm.(H)

Case Dimensions:        2030mm. (L) X 760mm.(W) X 1325mm. (H)

Input Specifications:    Label Height:                             10mm. to 160mm.

                        Label Length:                            12mm. to Unlimited.

                        Gap between two label
