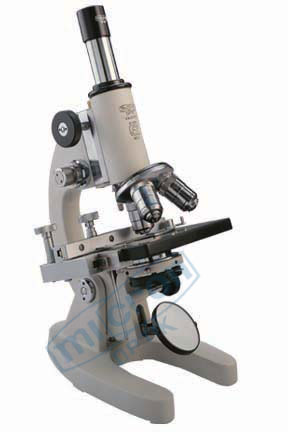

LABORATORY and MEDICAL MICROSCOPE

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Model No .: KG-5 This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques. The Accurate and practical design of this instrument has....

View More Details

Send Enquiry

Company Information

MICRON INSTRUMENT INDUSTRIES

Saha, Ambala, Haryana

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 1966

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model No .: KG-5

This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques. The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in laboratories, universities and hospitals.
STANDARD FEATURES
1.	Mechanical tube length of 160 ± 1mm.
2	Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage.
3.	Dust proff triple revolving nose piece with positive click stops.
4.	Focusing by coarse and fine adjustment with scale.
5.	Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder focusable by Rack & Pinon.
6.	Illumination by plano concave mirror in fork mount.
7.	With dust cover dully packed in styofoam case.

EYE PIECES	OBJECTIVES	MAGNIFICATION
5X & 10X & 15X [Huygenian] any Two	X10 & 40 S/L & 100 Oil [Achromatic]	X100 - X1500

1.	Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1.
2	Objective......:. .X4, X20, X45 S/L, X60 S/L
3.	Eye Pieces...:...W.F. 10X.
4.	Interchangable 45º inclined Monocular Tube.
