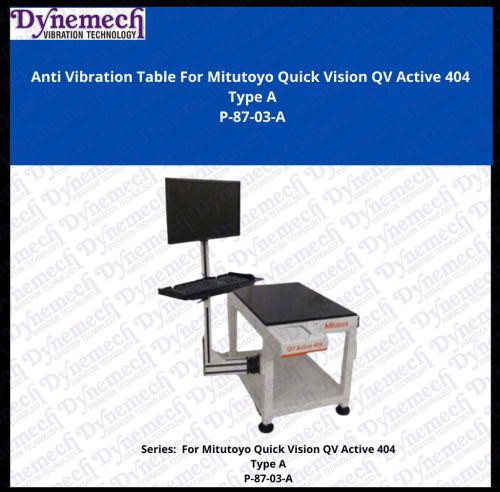

Laboratory Anti Vibration Table for Qv Active 404,P-87-03-A

1. Granite base of size L 900 X B 650 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile, monitor bracket at top, keyboard and mouse tray at ~1000 mm height (newly introduced!).
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front joystick panel laser cut with top rim and Z-plates at bottom to lock joystick.
9. All four sides open, bottom sheet to place controller, CPU and UPS
10. Power strip in rear; Leveling Ball, Spanner 24/27
11. Powder Coat, structure and joystick panel RAL 9002
12. Instrument sticker
13. Overall dimensions: L 920 X B 670 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box

The AVT for Mitutoyo QV Active 404 (P-87-03-A) is engineered with a precision granite base measuring 900mm (L) x 650mm (B) x 30mm (T). It features a 60mm tubular steel structure with a cross member and wrap-around construction for enhanced rigidity. Newly introduced is a front pivot-jointed heavy-duty link system, complete with extended horizontal and vertical (45x45) connecting profiles. A monitor bracket is mounted at the top, and a keyboard/mouse tray is positioned at approximately 1000mm height for ergonomic operation.

 Note- GST and Freight Charges are not included.
