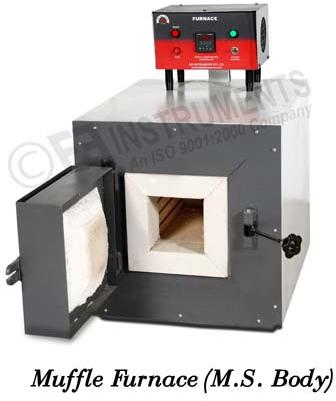

Contact SupplierWe are offering laboratory furnace. Horizontal, front loading type
in this improved model, ceramic fiber wool insulation (instead of brick insulation) has been provided resulting in weight and size reduction of furnace. The weight and size of the furnace is 14 and 30% respectively as compared to brick furnace. The heat up time is less. Heat loss is very low-resulting in power saving.
Technical specifications
â· construction : crc sheet - attractively powder coated
â· insulation : ceramic fiber wool insulation
â· max temperature : 1200â°c
â· working temperature : 1150 â°c
â· temperature control : dual display microprocessor based digital temperature indicator cum controller
â· temperature sensor : k - type sensor
â· heating : kanthal a-1 wire in coil form placed in the elements ribs & easily replaceable
â· circuit wiring : as per ce norms
â· operation on : 220230 volts, single phase, ac supply
â· ratings : 2.0 kw
â· size : 12" x 6" x 6" (d x w x h)
vent port
built in vent port for removal of noxious gases etc preferably with a provision of connecting the extension pipe with vent lid should be air tight for volatile matter analysis.
calibration port (if required by indenter)
provision of hole with cover will be provided in the furnace door for putting temperature sensor for calibration of equipment
safety features
muffle furnace will include following safety features
1) thermocouple breaks protection to cut power to the heating element in order to prevent thermocouple failure runway condition.
Standard fittings supplied with the instrument
a) compensating cable
b) indicating lamps
c) indian standard power plug & cord
note
the heating coils of the furnace are warranted for 1000 working hours or 12 months whichever earlier from the date of usage.
