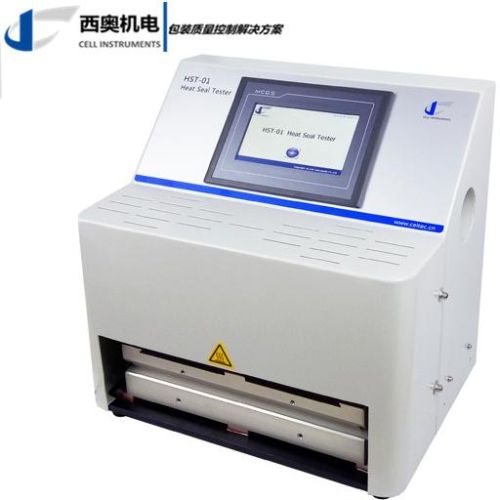

Laboratory Heat Sealer, Brand Name : Cell Instruments

We are offering laboratory heat sealer. Laboratory heat sealer is professionally designed for the precise measurement of sealing temperature, time and pressure.
It is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc.
Features
1. 7 inch tft touching screen makes parameter setting and operation easy and convenient for heat seal tester.
2. plc for precise dwell time and sealing pressure control
3. p.i.d. For precise sealing temperature control
4. uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating
5. multiple groups of test parameters can be saved to reduce setting time and eliminate human error
6. independent heating of upper and lower sealing jaws on the model of heat seal tester.
7. sealing jaw customization available in term of dimension, shape and surface
heat seal tester technical specifications
sealing temperature room temperature ~ 300℃
deviation ±0.2℃
dwell time 0.1 s~9999s
sealing pressure 0.15 mpa ~ 0.7 mpa
sealing jaws 330mm×10mm(sealing surface)(customization available)
double heating of upper and lower jaws
standard
astm f2029, qbt 2358, ybb 00122003
