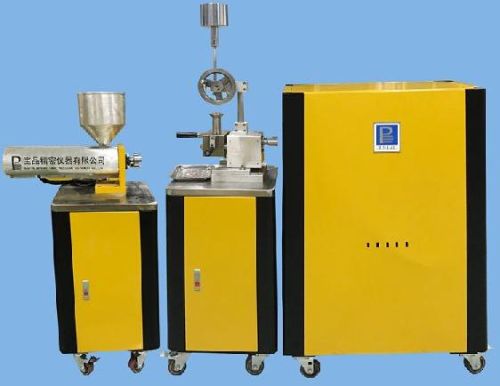

Laboratory Torque Rheometer

Lab torque rheometer TorqueRheometer isa measuring system for studying the flow, plastcizing, heat and shear stabilityof polymers. This torque rheometer system consists of a platform and somefunction units, such as the mixer and extruder. The platform connected with afunction unit can measure flow and compounding behaviors, critical processingparameters of temperature, pressure, torque and viscosity of polymers in thelaboratory-requiring only small sample volume. This labtorque rheometer, which is designed to a excellent system with high measuringprecision, handling flexibility and testing reproducibility, has been widelyapplied in science research, quality control and process experiment. Ⅰ. Components and function 1. Mainframe: Receiving andsending data signal control temperature and mechanical transmission, real-timemapping pressure -time, temperature-time, torque - time curve reports and so on 2. Mixing unit: Divided into 50 mland 300 ml of two kinds, both of them mainly complete material characterizationof rheological measurements, and complete material mixing and plasticizing, canbe used as mixed material research. Equipped with three kinds of rotors with shearcapacity. Make the material and rotor execute mixing shear by the same speed butopposite direction force to the chamber wall 3.. Extrusion unit: Simulate actual processing equipment to evaluate material processing performance. It can also cooperate with capillary die under the different shear rate
