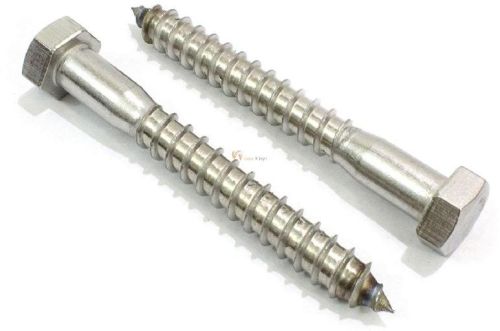

Lag Bolts

Lag Bolts, Length : 3 mm to 200 mm, Custom Sizes, Size : M3 - M56

Listing ID #4051842

Get Latest Price
  • MOQ 5 Piece
  • GradeDIN, ASTM, BS and all International Standards
  • Length3 mm to 200 mm, Custom Sizes
  • SizeM3 - M56 , 3/6" to 2", Custom Sizes
  • Packingcanton, pallet, Small Boxs or customer request
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Vision Alloys
Girgaon, Mumbai, Maharashtra
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Grade DIN, ASTM, BS and all International Standards
  • Length 3 mm to 200 mm, Custom Sizes
  • Size M3 - M56 , 3/6" to 2", Custom Sizes
  • Tolerance +/-0.01mm to +/-0.05mm
  • Packing canton, pallet, Small Boxs or customer request
  • Material Grade Stainless Steel 310 ,316,317,347

bolt Diameter D   F H Threads Per Inch Thread Dimension
  Body Diameter   Width Across Flats Head Height   Pitch TF TD TR
  Max Min         Flat At Root Depth of Thread Root Diameter
1⁄2 0.515 0.482 3⁄4 11⁄32 6 0.167 0.072 0.064 0.371
5⁄8 0.642 0.605 15⁄16 27⁄64 5 0.2 0.086 0.077 0.471
3⁄4 0.768 0.729 11⁄8 1⁄2 41⁄2 0.222 0.096 0.085 0.579
7⁄8 0.895 0.852 15⁄16 37⁄64 4 0.25 0.108 0.096 0.683
1 1.022 0.976 11⁄2 43⁄64 31⁄2 0.286 0.123 0.11 0.78
11⁄8 1.149 1.098 111⁄16 3⁄4 31⁄4 0.308 0.133 0.119 0.887
11⁄4 1.277 1.223 17⁄8 27⁄32 31⁄4 0.308 0.133 0.119 1.012
13⁄8 1.404 1.346 21⁄16 29⁄32 3 0.333 0.143 0.128 1.119
11⁄2 1.531 1.469 21⁄4 1 3 0.333 0.143 0.128 1.244
LAG BOLTS SPECIFICATION
Material Standards Grades
Nickel Alloy U Bolts ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel U Bolts ASTM / ASME A/SA 193 / 194 B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel U Bolts ASTM / ASME A/SA 193 / 194 GR B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel U Bolts UNS NO. S 31803, S 32205 Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials: Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys: 1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks: Carpenter, Armco, INCO, Cabot, DuPont.
Finish: Black Oxide, Zinc Plating, Hot Dip Galvanized
