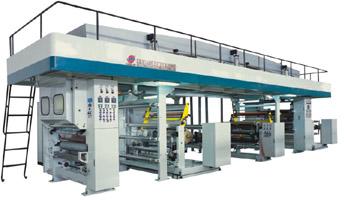

Laminating Machine, Frequency : 50 Hz.

Offering Laminating machine.
Main Features
1. Pneumatic openclose drying hood in safe design, enclosed updown drying hoods reduce the residual impregnant at maximum and also make the web pulling conveniently.
2. Rewind rotary turret with the web-pressed roller, and reel is braced with shaftless cones or pneumatic shaft.
3. Independent double-arm dual-working position rotary turret, and single- working position is used for the 2nd alfoil unwinding.
4. Laminating roller is driven independently; close-loop tension control makes the films laminated at the same tension and the finished product is very smooth and tidy.
5. Imported EPC system assures the unwinding web edge tidy.
6. Doctor system at three-dimension adjustment
7. The design has the ideas of safety and environment protection; early-volatilized solution is discharged before going into the drying hood.
Technical Parameters
Max lami.speed 150mmin（alfoil lami.80-100mmin）
The 1st unwind dia Ф600㎜
The 2nd unwind dia Ф600㎜
Rewind dia Ф800㎜
Drying method
electricity heating, steam heating or oil heating(choose freely)
