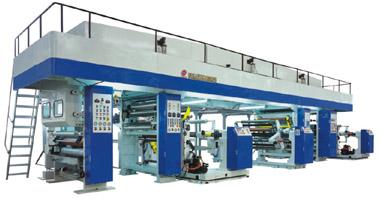

Laminating Machine, Driven Type : Electric

Offering Laminating machine.
Main Features
1. Independent double-arm, dual-working position rotary turret
2. Heavy doctor in independent driving can be adjusted at three dimensions for controlling doctor vibration efficiently
3. Feeding roller system and low-damping dancer system control the tension fluctuation efficiently.
4. Gluing pressing roller with direct pressure makes the web breadth at even pressure.
5. Imported EPC system assures the unwinding edge smooth and tidy.
6. Three-roller system with direct pressure makes the whole web even pressure; double- chill roller system is at S-type with good cooling effect; they have the active performance and tension is very stable.
7. Anilox roller is driven independently with varispeed control.
8. Safety design, drying hood has the anti-explosion discharge device.
Technical Parameters
Max lami.speed 200mmin（alfoil lami 100-120mmin）
The 1st unwind dia Ф600㎜、Ф800㎜
The 2nd unwind dia Ф600㎜、Ф800㎜
Rewind dia Ф800㎜、Ф1000㎜
Drying method
electricity heating, steam heating or oil heating(choose freely )
