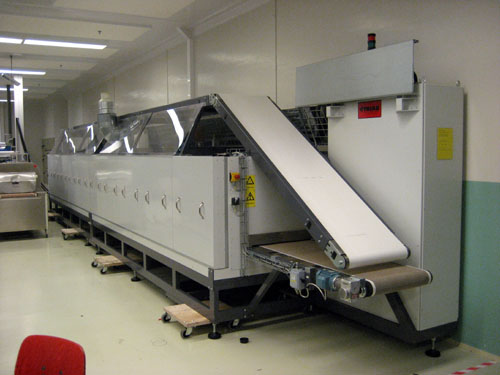

Laminating Tunnel - Machine TRIAB 2 X 40.5 kW

This laminating machine / convection oven is made by Swedish TRIAB / Tri Innovations AB in year 2006. The laminator machine is designed for industrial use and in build up in two separable laminating sections, both equipped with one 40.5 kW hot air blowers, one product and one return conveyors and common control unit. All product touching parts are made either of stainless steel (structures and panels) or Teflon made net belts. Convection belt (600 mm wide) is located inside of the oven tunnel and has grid type surface, the return conveyor is installed on the tunnel and it has tight waived Teflon belt. The control cabinet is attached to the laminating machines structures. The speed of laminating conveyor is adjusted with an inverter driven motor. The speed of return conveyor can be fine tuned via a potentiometer. The equipment is featured with a remote control possibility. This has been operating with hygienic products (material foam / polyurethane film, thickness 5 mm, max. width 450 mm and production speed 6 m/min) and is in excellent operational condition with total 3450 operating hours only and it comes with original operation manual in English language.
Technical data:
Made by: TRIAB / Air Innovations AB
Manufacturing year: 2006
Total operating hours: 3450
Convection capacity: 2 x 40.5 kW
Process control PLC: Eurotherm 2216e
Hot air circulation volume: 2 x 9000 m3/h
Fan electric power: 2 x 2.2 kW
Temperature range: 50 � 150 C
Total machine length: 10 000 mm
Total machine width: 1600 mm
Convection belt material: Teflon
Convection belt length: 9 000 x 600 mm
Convection belt speed: 3 � 8 m/s / 0.25 kW, inverted controlled
Heated width: 650 mm
Inside / free height: 80 mm (from belt to nozzles)
Return conveyor: Habasit FAB-8EO WV
Return conveyor dimensions: 12000 x 600 mm (Teflon)
Return conveyor drive: 0.25 kW, 380 V/50 Hz
