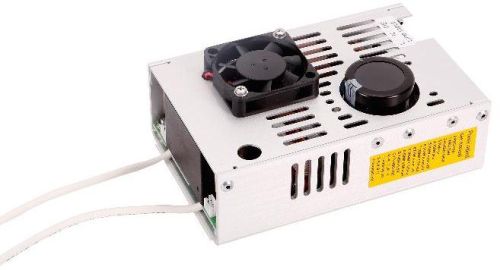

Lamp Electronic Ballast

� � power supply for xenon filled short arc lamps
� � designed for xenon and mercury short arc lamps rated up to 100w
� � output power customer selectable by dil16step -switch
� � capable to drive lamp voltages ranging from 8 to 45v
� � certified by osram and ushio
� � input voltage range from 90v ac to 264v ac, power factor corrected
� line input, built-in emi-filter: meets ce and fcc part �a�
� � µp controlled, digital power management with high output stability over lamp lifetime
� � output short circuit protected
� � galvanic separation of lamp output and line input, thermal shut off at 90°c
� � indication function for end of lamp life selectable and shut off for lamp fail parameter
� � customer adjustable to less than 0.3% rms light flicker at all frequencies uninterr.
� � default light stability with modulation of less than +-3% during full wave supply interruption
� � auxiliary regulated 12v 0.2a output for fan drive (available only when lamp lit)
� � flexible design: new lamps and functions adaptable by software
