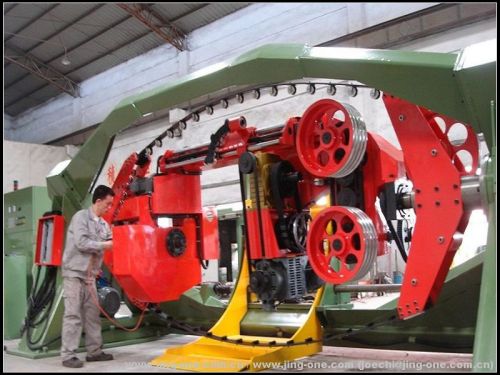

LAN Cable Making Machine Wire Stranding Machine

₹ 51.59 Lakh / Set

MOQ1 Set(s)
Brand Namejing-one
Packaging Typeabout
Conductor MaterialCAT5, CAT6
Applicationtwisting
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of Flower1250p Lan
Brand Namejing-one
Applicationtwisting
Packaging Typeabout
Number of Conductors4-84
Conductor MaterialCAT5, CAT6
Jacketpvc pe
NameCable Making Machine Wire Stranding Machine for twisting wire
Place of Origindongguan
Model Numberjo-1250

APPLICATION:
It Applies to twist insulated core wire for power cable and CAT5, CAT6 communication cable. Also It can tap the cable synchronously.
Consisting Components
This machine is composed of Pay-off, single twist machine, center tapping machine, length counter, electric control system.
Specialty:High Speed
Motor:Germany-Siemens
Inverter:Japan-Yasikawa
Bearing:Japan-NSK
Electric Elements:Germany-Siemens
Line Speed:1000rpm
Maintance:1 Year
Wire Dia.: Max 14mm
Wire Diameter:0.6--3.0mm
Export Markets:Global
Our Products
a.Silicone wiretube extrusion production line(Model 45mm-120mm screw)
b.Teflon wire extrusion production line(Model Model 25mm-65mm screw)
c.PVCPEXLPE cable extrusion production line(Model 25mm-150mm screw )
d.Flat ribbon cable extrusion production line(Model 35mm-90mm screw )
e.CATVCCTV Cable Complete Production Line
f.Garden pipePE Pipe Prodiction Line (Model 50-90mm screw )
g.Optic fiber loose tube production line
h.Optic fiber cable production line ( FTTH and round type )
i.High speed copper wire double twist bunching machine (Model 300mm-800mm )
j.Core wire twisting machine Cantilever core wire twisting machine (Model 630mm-1250mm)

Additional Information

Payment Terms L/CT/T
Port of Dispatchshenzhen
Packaging Details1,transparent PE bag 2.cardboard wrapping corner protection, wire rope in fixed to sea ship 3.machine weight Is About 3500 Kg / 1 set . 4,quantity of a 20 container is 2 units
Delivery Time20-30
