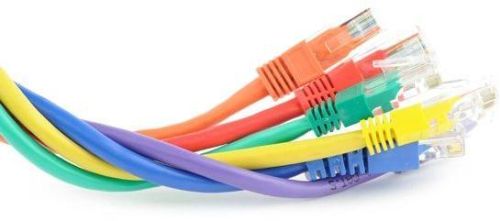

PVC LAN Cables, Feature : Easy To Use, Fast Working, Light Weight

Get Latest Price

MOQ50 Roll
MaterialPVC
Packaging TypeMulticolor
ConditionNew
FeatureEasy To Use, Fast Working, Light Weight
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Relemac Technologies Pvt. Ltd.

Kundli, Sonipat, Haryana

4.5/5

(28)

View Number

Member Since 20 Years
Nature of Business Manufacturer
GST No. 06AAECR4146D1ZO

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialPVC
Packaging TypeMulticolor
ConditionNew
FeatureEasy To Use, Fast Working, Light Weight
Number Of FlowerLan Cables
Total Carbohydrate1yrs

Networking / Lan Cables
At Relemac Cables, we are a trusted manufacturer and supplier of LAN cables, signalling cables, structural cables, and data cables in India. Our LAN cables are designed by experienced professionals and manufactured using the latest technology, ensuring that they meet the highest standards of quality and performance. We offer a range of LAN cables in various specifications, including bulk purchases to cater to the diverse needs of our customers.
In addition to LAN cables, we also provide signalling and structural cables that are designed for specific requirements. Our signalling cables are used for transmitting signals over long distances, while our structural cables are perfect for large buildings and other structures.
Our data cables are ideal for customers who require a connection between their computer and GPS device. These cables are available in the newer USB or the older serial protocol, depending on your needs. All our cables are tested and approved to provide a stable and reliable connection.

Specifications

Product State		Transmission Characteristics
Type	CAT-5E FTP	Impedance(zo) 1-100MHz	100 ± 15ohms
Standard	4 Pairs	Attenuation(IL) 100MHz	:22dB/100m
		Return Loss(RL) 100 MHz	20dB/100m
Material Construction		Next 100MHz	35 dB/100m
Conductor	Copper 0.50mm	PSNEXT 100 MHz	32.3dB/100m
Insulator	Solid PE 1.00mm	ELFEXT 100MHz	24dB/100m
Tape	Polyester Ribbon 30mm	PSELFEXT 100MHz	21dB/100m
Drain wire	Tinplate Copper 0.50	Velocity of propagation 100MHz	0.620/100m
Shield	AL Foil 70mm	Delay 100MHz	538 ns/100m
Jacket	PVC	Speed (SKEW) 1-100MHz	45ns/100m
Delivery Instruction		Product Standard
Length	305m/box	ISO/IEC 11801
Diameter	6.5 ± 0.1mm	ANSI/EIA/TIA-568-B
Max Strain Power	80N	YD/T1019-2001
Temperature Range	-40ºC ~ +60ºC	YD/T838-1976

Download Detail File : Click Here

Specifications-2

Product State		Transmission Characteristics
Type	CAT -6E FTP	Impedance(ZO) 1-250MHz	100 ± 15 Ohms
Standard	4Pairs	Attenuation(IL) 250MHz	22dB/100m
		Return Loss(RL) 250 MHz	20dB/100m
Material Construction		Next 250MHz	38.3dB/100m
Conductor	Copper 0.55 mm	PSNEXT 250 MHz	:36.3dB/100m
Insulation	Solid PE 1.10mm	ELFEXT 250MHz	19.8dB/100m
Type	Polyster Ribbon 30mm	PSELFEXT 250MHz	16.8dB/100m
Drain wire	Tinpate Copper 0.50	Velocity of propagation 250MHz	0.620/100m
Shield	AL Foil 70mm	Delay 250MHz	538 ns/100m
Jacket	PVC	Speed(SKEW )1-250MHz	45ns/100m
Delivery Instruction		Product Standard
Length	305m/box	ISO/IEC 11801
Diameter	7.3 ± 0.1mm	ANSI/EIA/TIA-568-B
Max Strain Power	80N	YD/T1019-2001
Temperature Range	-40ºC ~ +60ºC	YD/T838-1976
		UL-444

Download Detail File : Click Here

Standard -4

Product State		Transmission Characteristics
Type	CAT -5E UTP	Impedance(ZO) 1-100MHz	100±15 Ohms.
Standard	4Pairs	Attenuation(IL) 100MHz	22dB/100m
Material Construction		Return Loss(RL) 100 MHz	20dB/100m
Conductor	Copper 0.50 mm	Next 100MHz	35 dB/100m
Insulation	Solid PE 0.90 mm	PSNEXT 100 MHz	32.3dB/100m
Jacket	PVC	ELFEXT 100MHz	24dB/100m
		PSELFEXT 100MHz	21dB/100m
		Velocity of propagation 100MHz	0.620/100m
		Delay 100MHz	538 ns/100m
		Speed(SKEW )1-100MHz	45ns/100m
Delivery Instruction		Product Standard
Length	305m/box	ISO/IEC 11801
Diameter	5.4 ± 0.1mm	ANSI/EIA/TIA-568-B
Max Strain Power	80N	YD/T1019-2001
Temperature Range	-40ºC ~ +60ºC	YD/T838-1976
		UL-444
This category 5E, for pair is a high-speed high performance, 100 ohm impedance cable capable of carrying high bit-rate signaling for extended distances in horizontal cabling. Applications can include Voice, ISDN, ATM 155 Mbps, ATM 622 Mbps, 100 Mbps TPDDI, Fast and Giga Ethernet, 100 BASE-T Mbps TP-PMD, 100 Base - T.

Download Detail File : Click Here

Specifications-3

Product State		Transmission Characteristics
Type	CAT -6E UTP	Impedance(ZO) 1-250MHz	100 ± 15 Ohms.
Standard	4Pairs	Attenuation(IL) 250MHz	32.8dB/100m
		Return Loss(RL) 250 MHz	17.3 dB/100m
Material Construction		Next 250MHz	38.3dB/100m
Conductor	Copper 0.55 mm	PSNEXT 250 MHz	36.3dB/100m
Insulation	Solid PE 1.00mm	ELFEXT 250MHz	19.8dB/100m
Center Cross	PE	PSELFEXT 250MHz	16.8dB/100m
Jacket	PVC	Velocity of propagation 250MHz	0.620/100m
		Delay 250MHz	536 ns/100m
		Speed(SKEW )1-250MHz	45ns/100m
Delivery Instruction		Product Standard
Length	305m/box	ISO/IEC 11801
Diameter	6.8 ± 0.1mm	ANSI/EIA/TIA-568-B
Max Strain Power	80N	YD/T1019-2001
Temperature Range	-40ºC ~+60ºC	YD/T838-1976
		UL-444
his category 6, four pair cable is a high-speed high performance, 100 ohm impedance cable capable of carrying high bit-rate signaling for extended distances in horizontal cabling. Applications can include Voice, ISDN, ATM 155 Mbps, ATM 622 Mbps, 100 Mbps TPDDI, Fast and Giga Ethernet and IEEE 802.3/5/12, 100 BASE VG(100 BASE NE), 100 BASE -T Mbps TP-PMD, 100 Base - T and any other further applications designed for Category 6 Cables.
