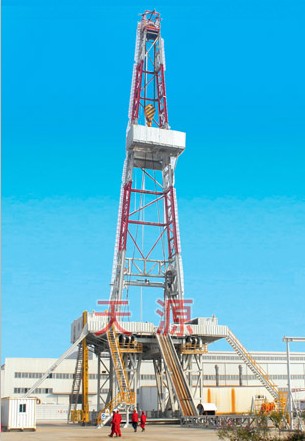

Land Drilling Rig

We are offering 5000m land drilling rig for cluster well drilling/zj50/3150 series.
Introduction
　　zj503150 series oil drilling rigs can be used in 5000 m drilling operation (114mm drill pipe).they are applicable to explore and develop oil, gas and water well. The features of drilling rigs are simple structure, easy operation, long durability.
　　the main models are as follows: zj503150j(belt compound),z503150l (chain compound),zj503150ldb(compound transmission),zj503150dz(dc drive), zj503150db(ac vfd).
Main features
　zj503150l(mechanical transmission) drive model: diesel engine + decelerator, chain compound + cardan shaft
zj503150j drive model: diesel engine + decelerator + belt compound + intermediate axle
zj503150ldb drive model: ac variable-frequency electric motor drive the rotary table
zj501350db : ac variable-frequency electric motor , single shaft drawworks
main technical parameters
model zj503150j zj503150l zj503150ldb zj503150dz zj503150db
drilling depth
(114mm drill pipe） 5000m 5000m 5000m 5000m 5000m
max hook load 3150kn 3150kn 3150kn 3150kn 3150kn
traveling system structure 6×7 6×7 6×7 6×7 6×7
fast line diameter φ35mm φ35mm φ35mm φ35mm φ35mm
max. Pull of fast line 350kn 350kn 350kn 350kn 350kn
power of drawworks 1100kw 1100kw 1100kw 1100kw 1100kw
