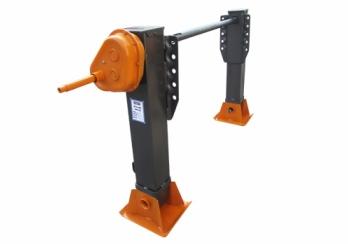

Landing Gear

We are offering landing gear.
Obt could supply fuwa landing gear, landing gear for semi trailer, semi trailer jost landing gear, landing leg, trailer landing gear, truck landing gear.
Obt landing gear feature:
1.the three-gear soft transmission and a unique man-saver tm drive ratio,saving 40% of the driving force.
2.unique e-z shift make the driving force to minimum and provide the best working efficiency.
3.the high intensity inside and outside leg to ensure strength while reducing weight.
4.high-strength forged gear.
5.shift positioning accuracy, and could optional to lightweight lifting device.
6.beyond aar m-931 and ttma the rp-4 all performance indicators.
7.unique computer stress analysis system to ensure the accuracy and strength of the tube wall molding specifications
specification:
capacity 25000kgpar
static load 60000kgpar
weight 90kg
types jxm-zj e250001t
part no t
d lift 430
a height 780
types jxm-zj e250002t
part no t
d lift 480
a height 830
capacity 28000kgpar
static load 80000kgpar
weight 96kg
low gear 0.7mm per turn (mmr）of handle
crank force high gear 3.8mm per turn(mmr) of handle
types jxm-zj-28-t01
part no t
d lift 430
a height 780
types jxm-zj-28-t02
part no t
d lift 480
a height 830
